QuickFit Connector recommended by CERN/SY-EPC

CERN/SY-EPC determined an EPC valid solution based on the quickfit connectors described below. CERN uses (through different contracts) 3 almost equivalent solutions based on relatively identical design but without full compatibility...

water-cooling-coupling-compatibility-vs-manufacturers

Manufacturer	Details
	Reference	Type	Comment	Illustration
Parker	SH2-62Y AISI 316 Stainless ¼'' BSPP  SSH2-62Y BSPP	Female	Y option→FPM (VitonTM) joint. EDH SCEM: 41.62.00.110.5
Parker	SH2-63Y AISI 316 Stainless ¼'' BSPP  SSH2-63Y BSPP	Male	Y option→FPM (VitonTM) joint. EDH SCEM: 41.62.00.010.5
Rectus	Serie 72 316 Stainless ¼'' BSPP  72KB IW13 EVX 1.4404	Female	FKM (VitonTM) joint.
Rectus	Serie 72 316 Stainless ¼'' BSPP  72SB IW13 EVX 1.4404	Male	FKM (VitonTM) joint.

CERN/EPC Quick Fit Water Connectors

connectors_pressure-drop

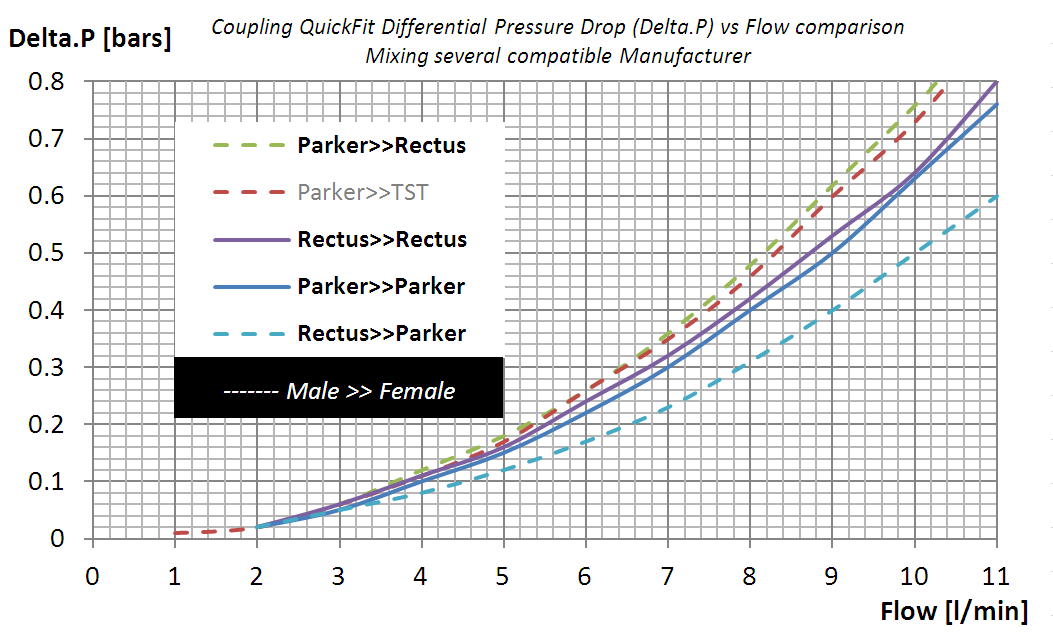

Some tests were done mixing different manufacters...

QuickFit Connector Internal Construction

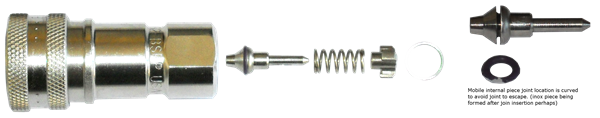

A quickfit connector was opened to analyze possible weakness in the design (joint)...

EPDM cable (see CERN store / specification here) is recommended. 1 synthetic rubber inner lining, 1 reinforcement consisting of one or two Kevlar inserts separated by one intermediate liner identical to the inner lining, 1 outer covering identical to the inner lining. This cable has been used for years at CERN (for magnet), with a long lifetime and robustness guaranted.

LHC Water Layout Characteristics

CERN uses INOX-316L material for its demonstrated reliability versus time and demineralized water environment with medium fluid velocity. Assemblies are cylindric type (not conic), and then requiring some additional joint sometimes, to allow to dismantle the pieces for repair.

Crimped fitting gives the insurance to respect the 20 bars minimum pressure the assembly must cope with (pressure test).

Male Termination Cable
Assembly 1				Assembly 2
1	2	3	4	1	2	3

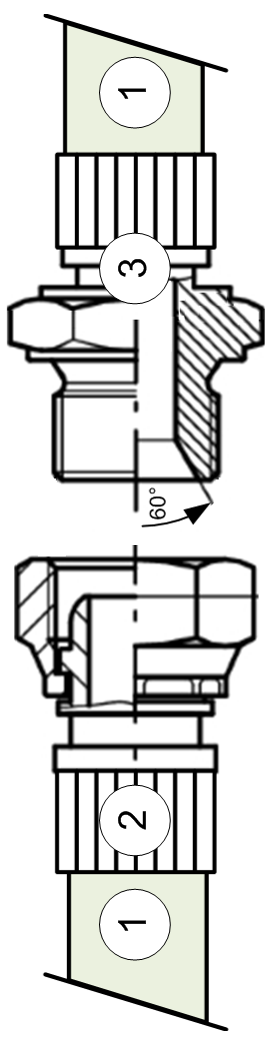

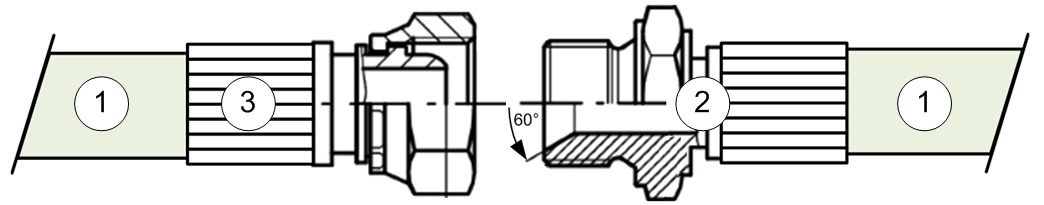

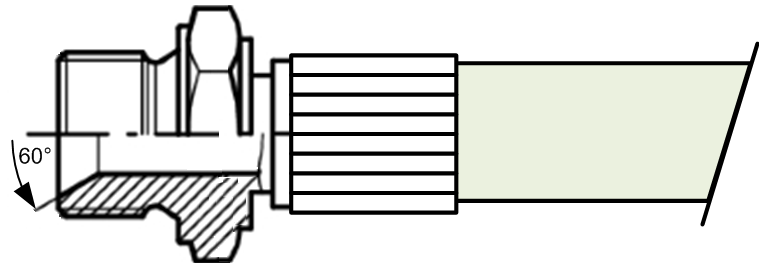

Halogen-Free EPDM Cable Dint.=6mm	Inox 316L Male BSPP G1/4 – Crimp fitting + Skirt crimp	Viton Joint Kit (protection)	Example: 1/4'' BSPP Female cylind	Halogen-Free EPDM Cable Dint.=6mm	Inox 316L Crimped 1/4'' BSPP Male cylind	Inox 316L Female Swivel BSPP G1/4 – Crimp fitting + Skirt crimp

CERN/EPC Assembly preferred water Cable - Male termination

Female Termination Cable
Assembly 1			Assembly 2			Assembly 3
1	2	3	1	2	3	1	2	3

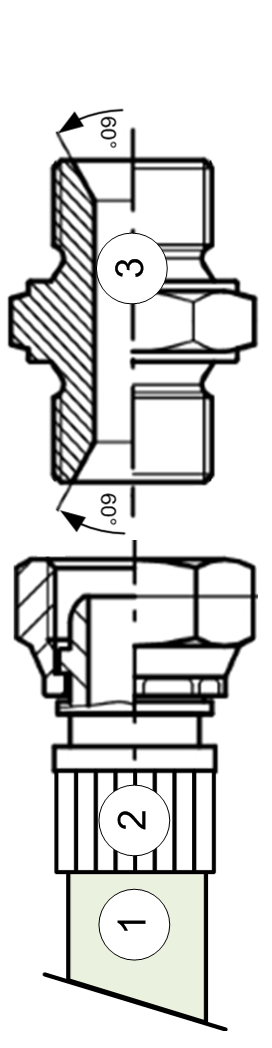

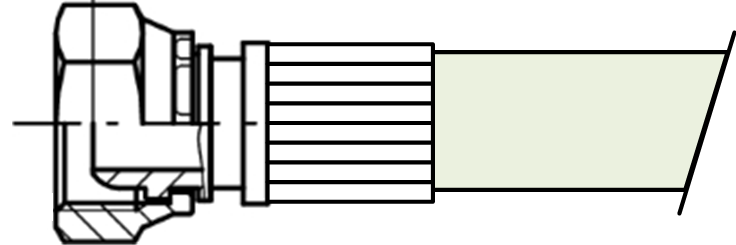

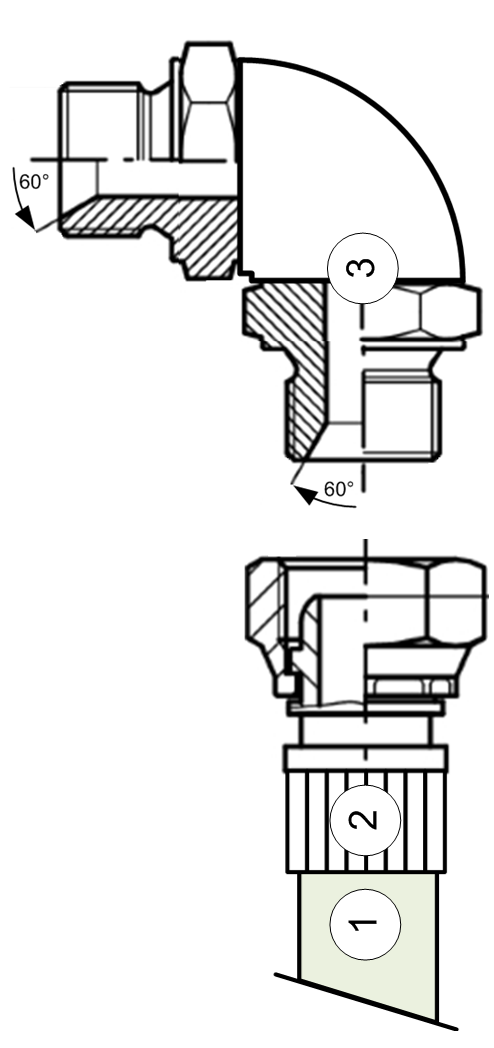

Halogen-Free EPDM Cable Dint.=6mm	Inox 316L Female Swivel BSPP G1/4 – Crimp fitting + Skirt crimp	Inox 316L Male BSPP G1/4 – Crimp fitting + Skirt crimp	Halogen-Free EPDM Cable Dint.=6mm	Inox 316L Female Swivel BSPP G1/4 – Crimp fitting + Skirt crimp	Straight male-male 60°	Halogen-Free EPDM Cable Dint.=6mm	Inox 316L Female Swivel BSPP G1/4 – Crimp fitting + Skirt crimp	90° male-male 60°

CERN/EPC Assembly preferred water Cable - Female termination .vsd

Flowmeters recommended by CERN/SY-EPC

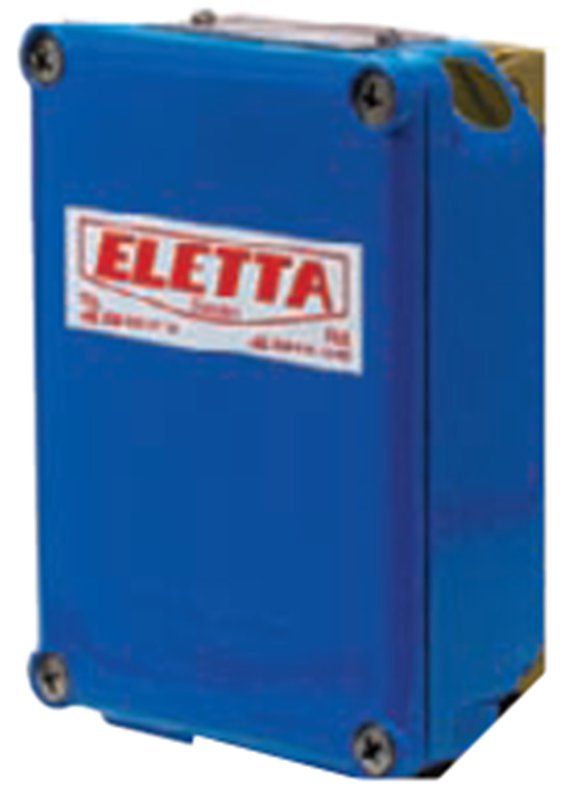

CERN/SY-EPC uses generally Eletta product for its proven robustness, based on adequate reference type...

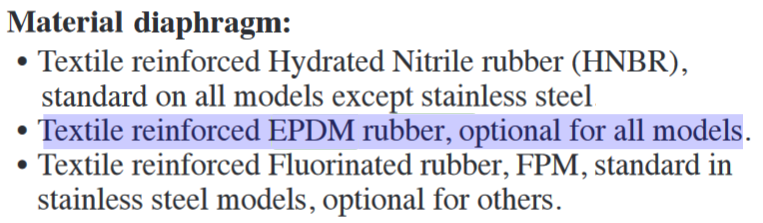

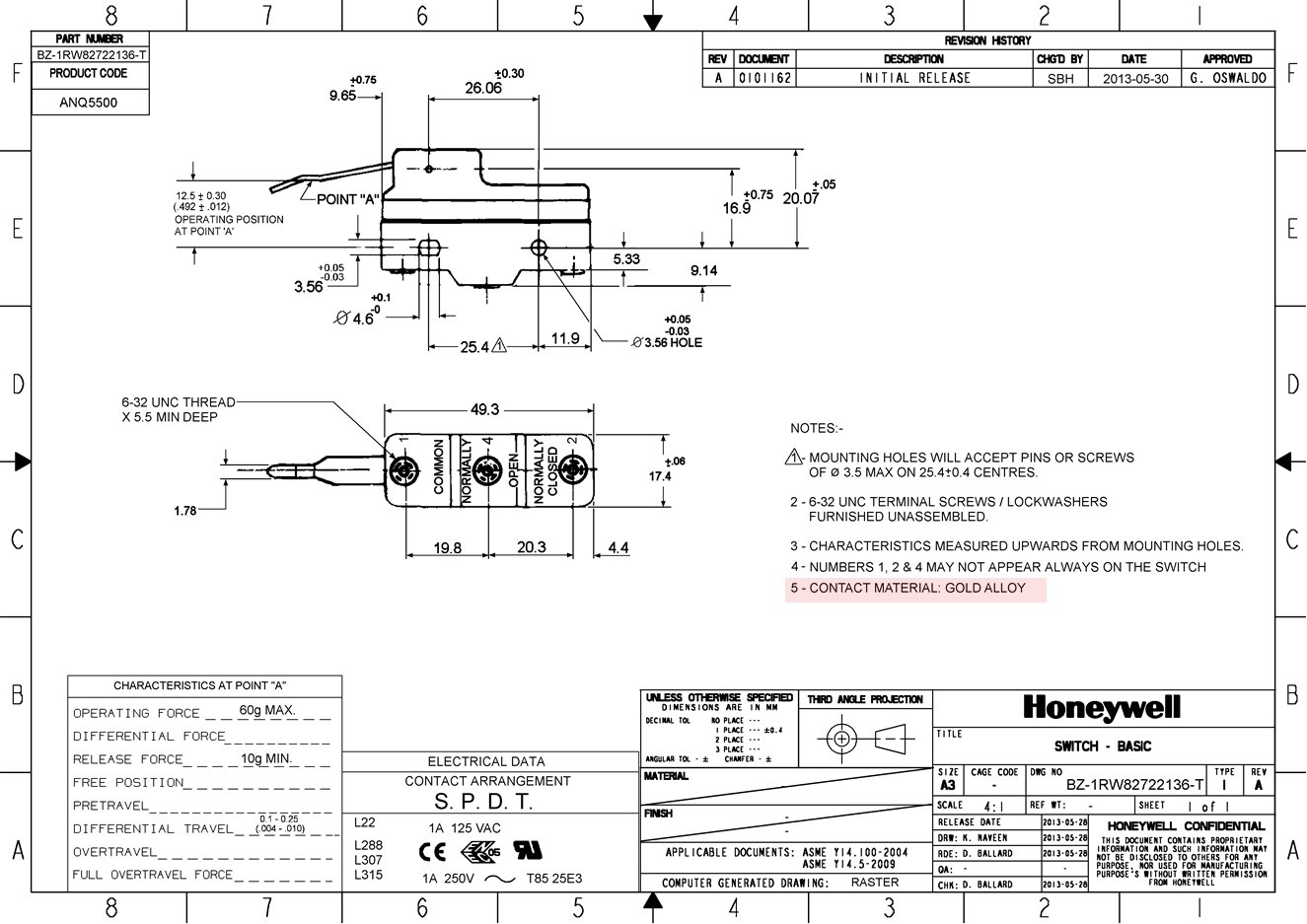

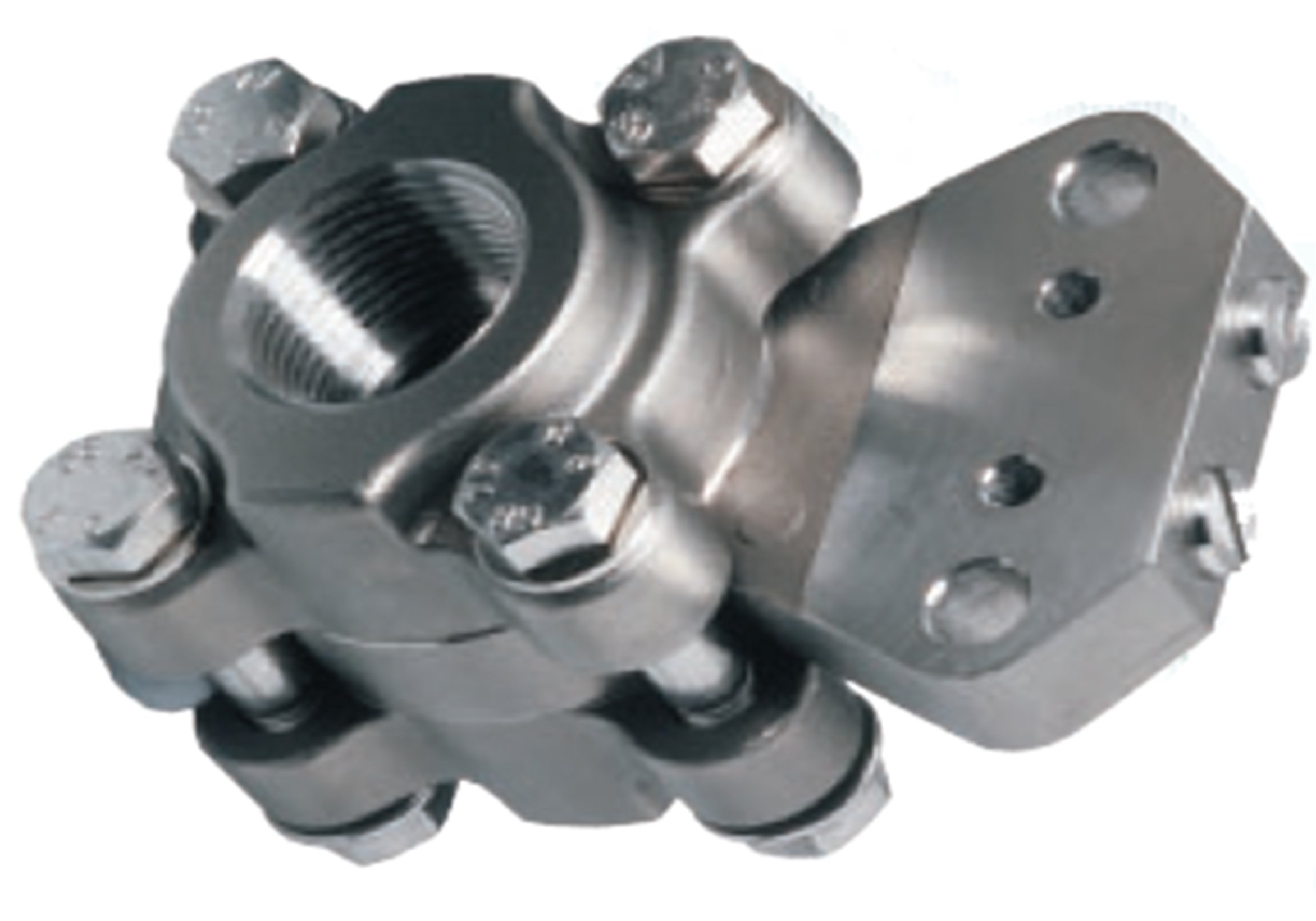

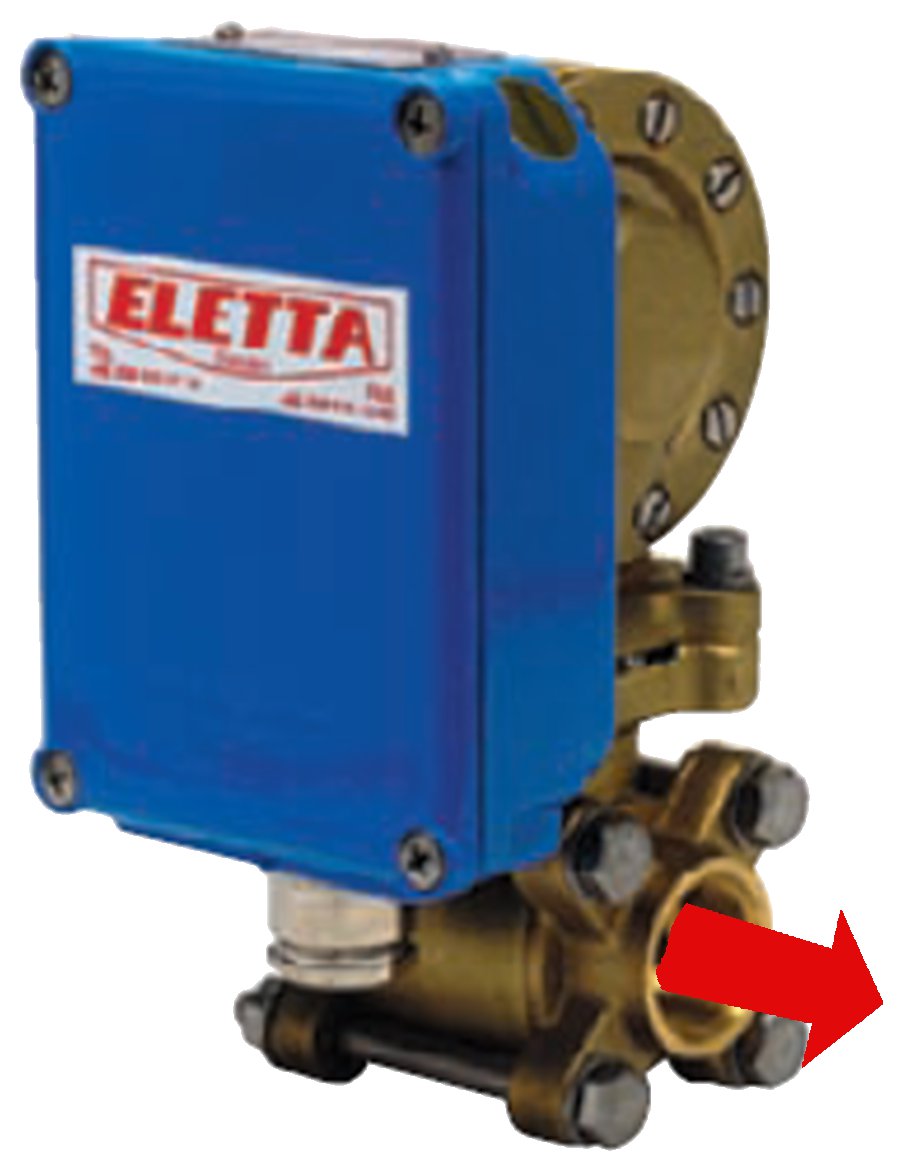

The prefered reference is V15-GSS15. The flowmeter shall be or all stainless steel (preferred), or V15-GL15+canigen treatment (which is still compatible with CERN demineralised water for 20-30 years of operation). The thickness of the canigen treatment is 25 µm, and the resulting colour of the treatment (for checking) is nickel. The internal contact should be used with gold treatment (corrosion if too small current typically less than 150 mA applied to standard material contact). Ag treatment still under investigation to determine if gold alloy is mandatory. Also the membrane material should be EPDM for best lifetime (Nitrile is a correct choice, even if lower than EPDM, when FPM (viton) is forbidden in radiation environment).

Reference ELETTA

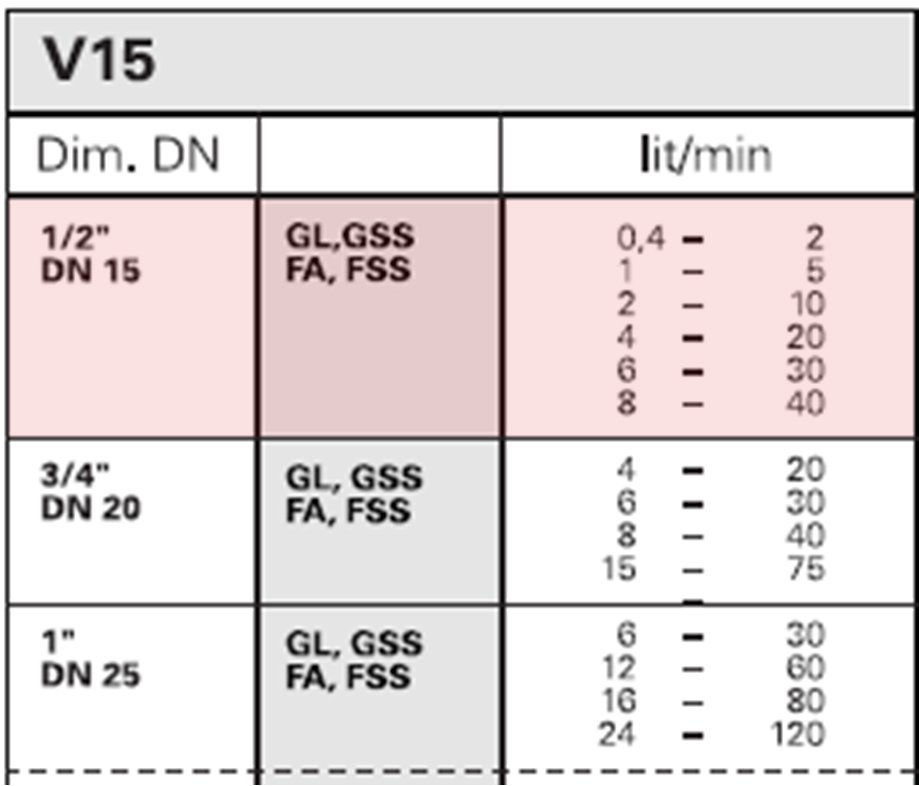

V15	GSS	15	(R) or (L)	1-5	SPDT	Option1	Option2	Certificat

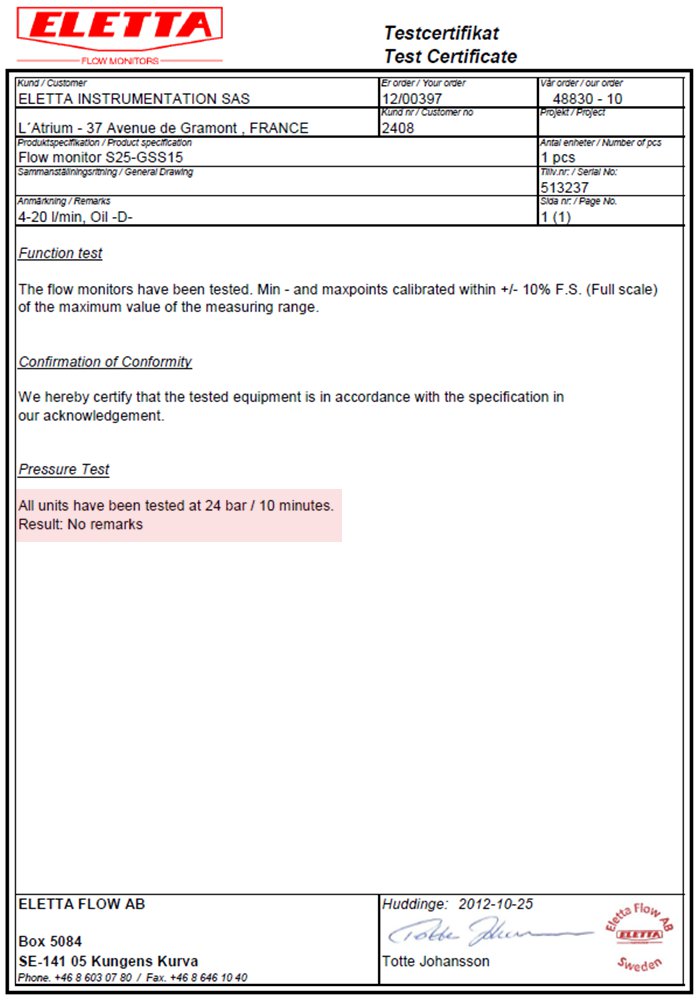

Head	Stainless Steel Duct Section	DN Size (15=1/2'')	Right/Left	range: l/min	Contact	Membrane material in EPDM	Microswitch Contact Material: Gold Alloy	Pressure Test @ 24 bars / 10 min

CERN/EPC preferred Eletta reference ( V series datasheet .pdf, Manual .pdf)
