Major scripts

Enhancing scripts

Setting / Updating all LPC scripts in one action

Script AutoUpdate

top

Auto install or update all your LPC scripts in one go/action.

Main Use scripts

Major Tools/Scripts

TekCapture		Collect remotely (ethernet) oscilloscope screenshot + data. The script works well with Tektronix MDO34, TDS3014. It can even preparing data for LTSpice used, and eal with stored data (captured), screenshots, and can also generate a new acquisition. It creates a folder at same script location, indexing records with acquisition date for managing / sorting several captures, requesting a name to distinguish records.		Python

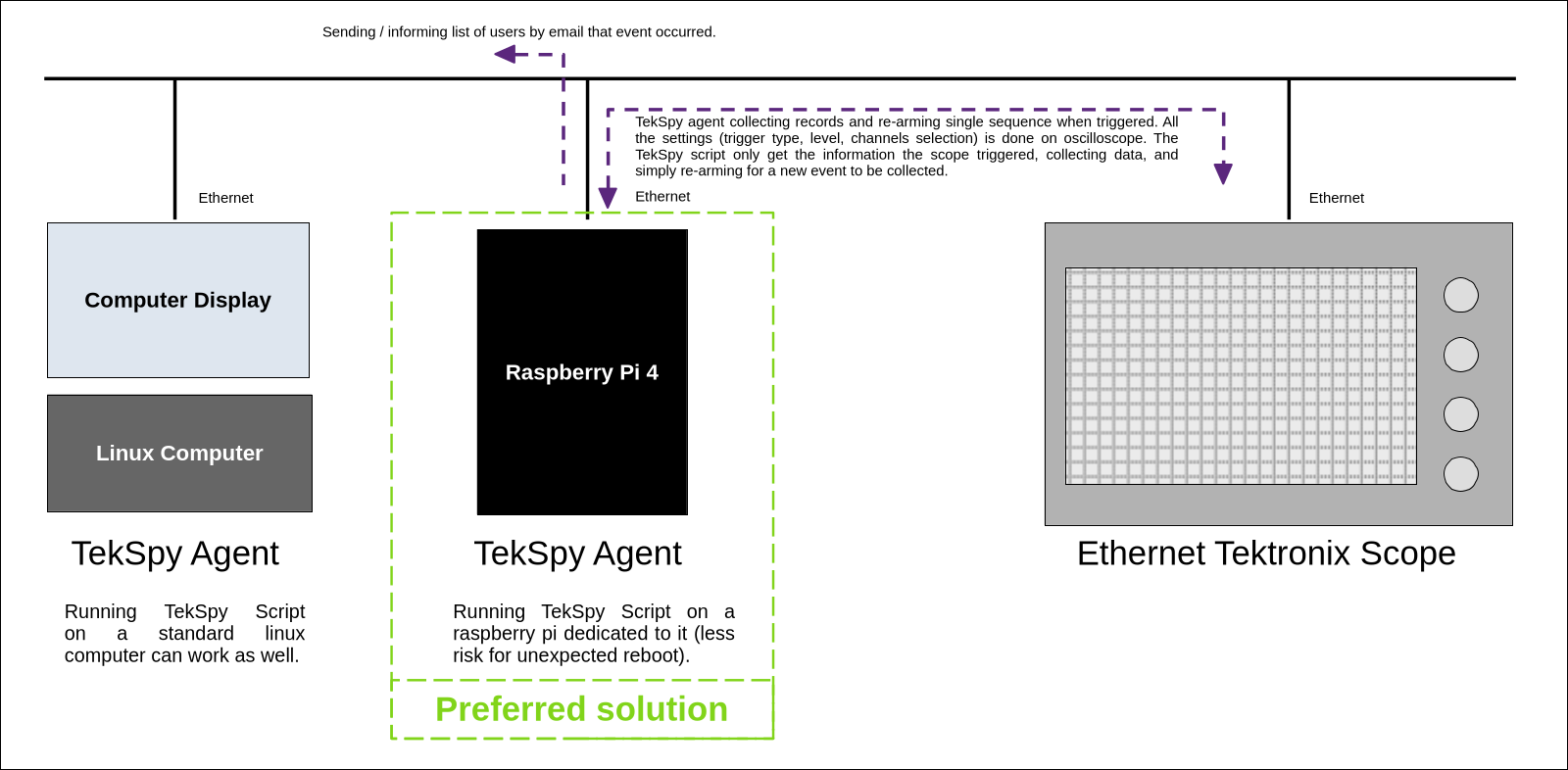

TekSpy		Collect remotely (ethernet) single sequence oscilloscope data. The script works well with Tektronix MDO34, TDS3014. Only data are recorded per default, since printscreen not fully working with TDS3014. A how to is available here. It is recommended to run it on a raspberry (connected to ethernet) for long periods.		Python
TFA102Ctrl		Control a GP 102 TFA, through sequences from config.txt file. The script replace labview application.		Python
EMCSimLab		Emulate an EMC Spectrum analyser: pk, q-pk detectors. The script compute one or more data input files, proposing average, peak or quasi peak analyse, keeping max values if several files computed. It makes a high use of modern scope (MDO34), providing high quality data set which can be post-processed. More info can be found here. It produces complete & valid results using a single, 20ms obs. only, 20Mb file: > [002ms/div; 1 MPts; hires (11 bits); AC-coupling] or, better, covering 1 sec of aquired signal, with 2 files which can be computed: > [002ms/div; 1 MPts; hires (11 bits); AC-coupling] > [100ms/div; 1 MPts; hires (11 bits); AC-coupling] 1s duration covers quasi-pk expectations from standards even if not explicitely given.		Python

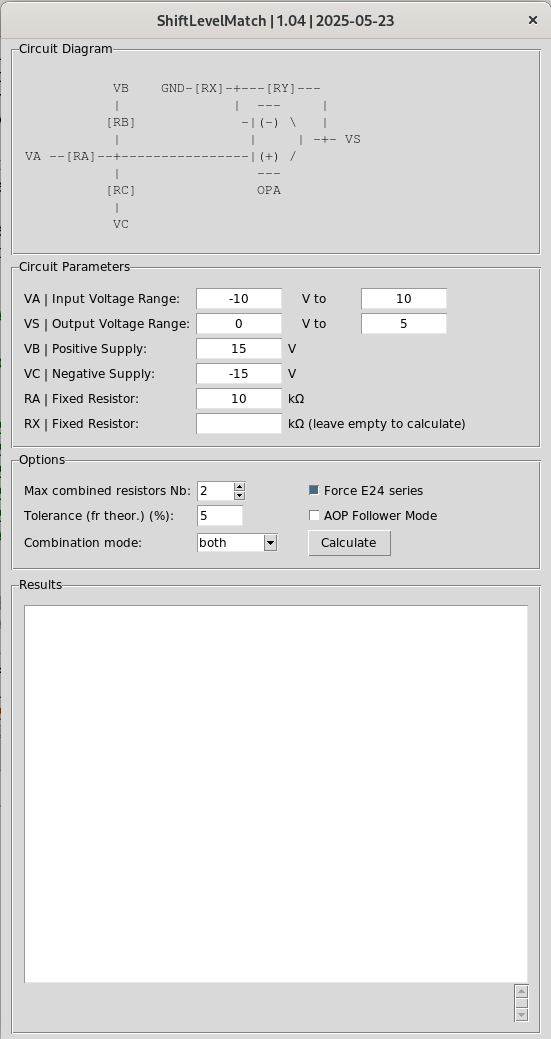

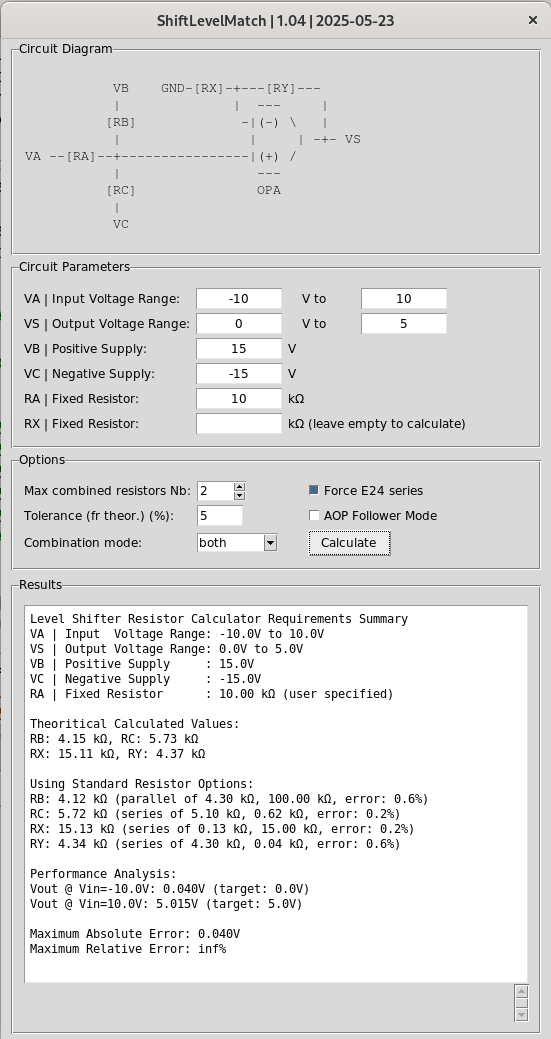

ShiftLevelMatch		Design Level Shifter (with / without) AOP matching user goals.		Python

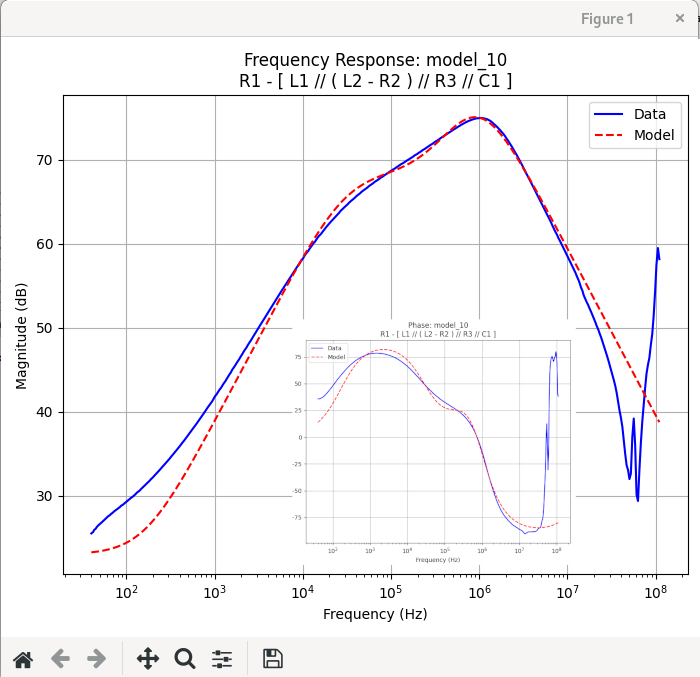

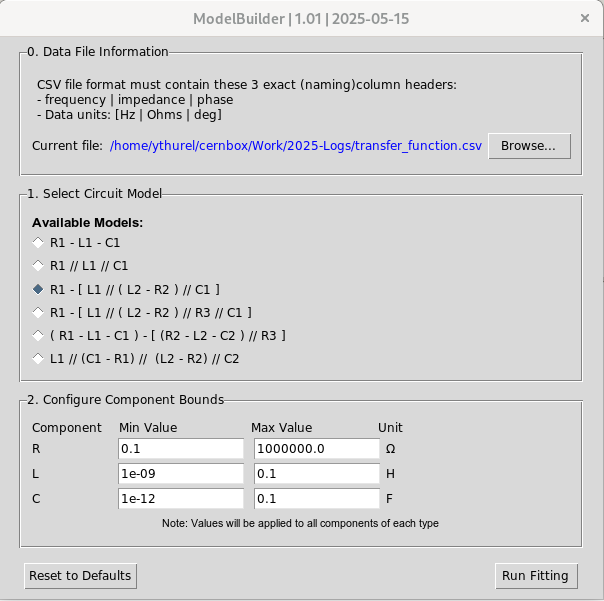

ModelBuilder		Synthesize an electrical model from impedance meas data (.csv).		Python
ThermaView		A script to manipulate radiometric IR photo from FLIR camera. The scripts works on Linux only for the moment.		Python
TimeStepX		Resample data into fixed time step new set of data. The script is interesting for resample LTSpice set of data into fixed time step other ones (FFT treatment through EMCSimLab, for example).		Python
TraceSplitX		Split a csv: CH1 to CH4 into single CH1.csv, CH2.csv... The script is interesting for managing signals with LTSpice.		Python

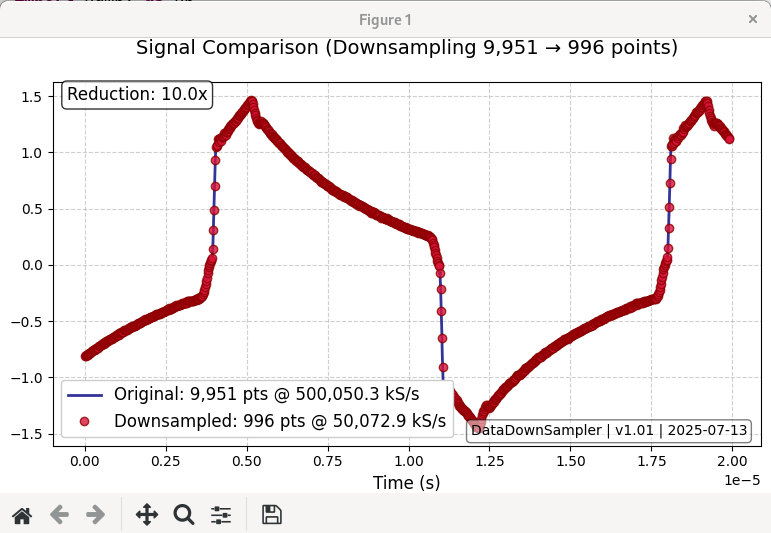

DataDownSampler		DownSampling large csv file (time, value), without header. The script simply downscale time-value initial csv file, displaying downsampled result.		Python
CERNrdp		Efficiently connect to your own CERN computers. The list relies on a local file, containing your computer in a list, so edit it, and maintain it.		Bash

Main Use scripts

USB Scope Dedicated Scripts

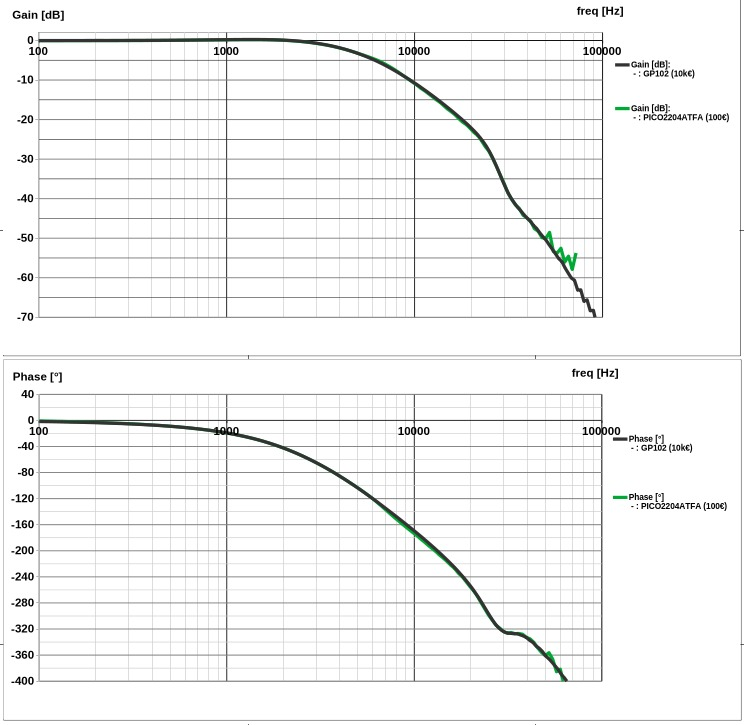

PICO 2204A		CAPTURE, AWG Ctrl, SPY, TFA and others. Several command line scripts (linux, raspberry) for automation, or simply to extend unit features. CAPTURE: Get channels in csv. AWG-Ctrl: Control Arbitrary Waveform Generator. SPY: Spy signal, trig, save and alert (emails). TFA: Transfer Function Analyser. CH2/CH1, using AWG (+/-2V).		Python
OWON VDS1022i		CAPTURE, MEAS. Several command line scripts (linux, raspberry) for automation, or simply to extend unit features. CAPTURE: Get channels in csv. MEAS: Get direct measurements from channels.		Python

USB Scope scripts

Enhancing Tools/Scripts

PdfProcessing		Process pdf from documents in a folder		Bash
CERNChromium		Launch Chromium from CERN proxy (FGC Tools).		Bash
LimitWindowsNb		Close windows (web, gnome) if too many (crontab/GNOME).		Bash
