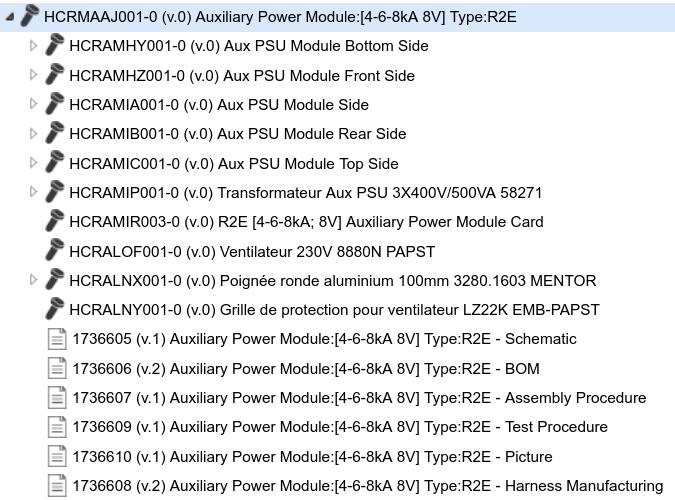

• An item is defined by a unique HCR code (incl. its version 001).

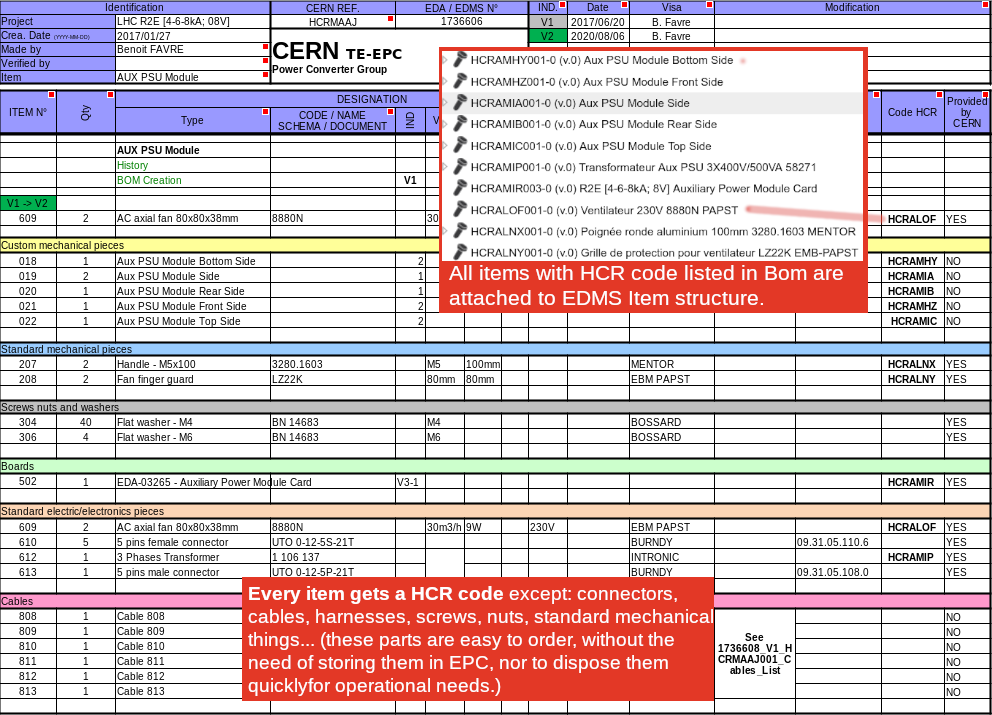

• Each PCB, mechanical parts, any part with a CERN specification (magnetics), critical component for operation and repair will get a HCR Code. (Parts like screws, nuts, connectors are applicable).

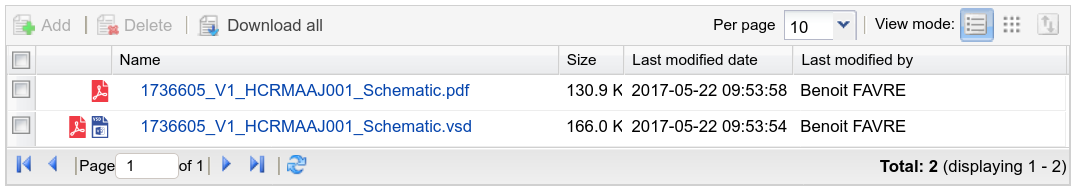

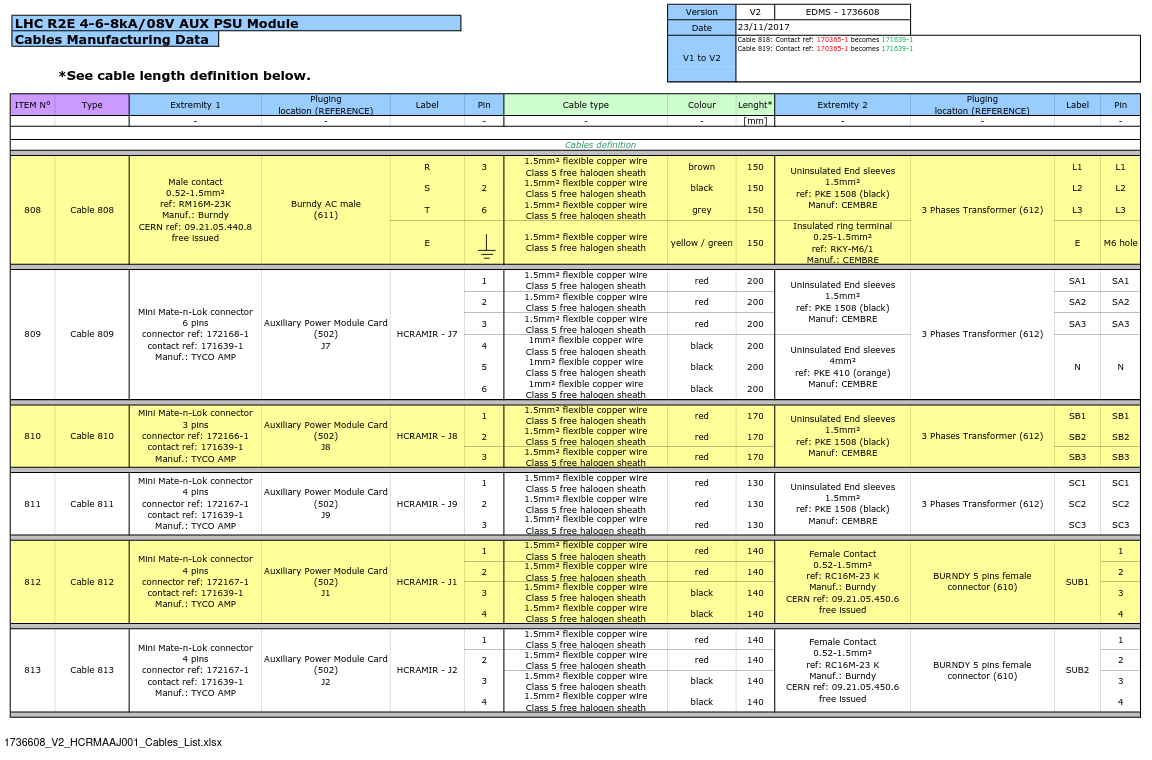

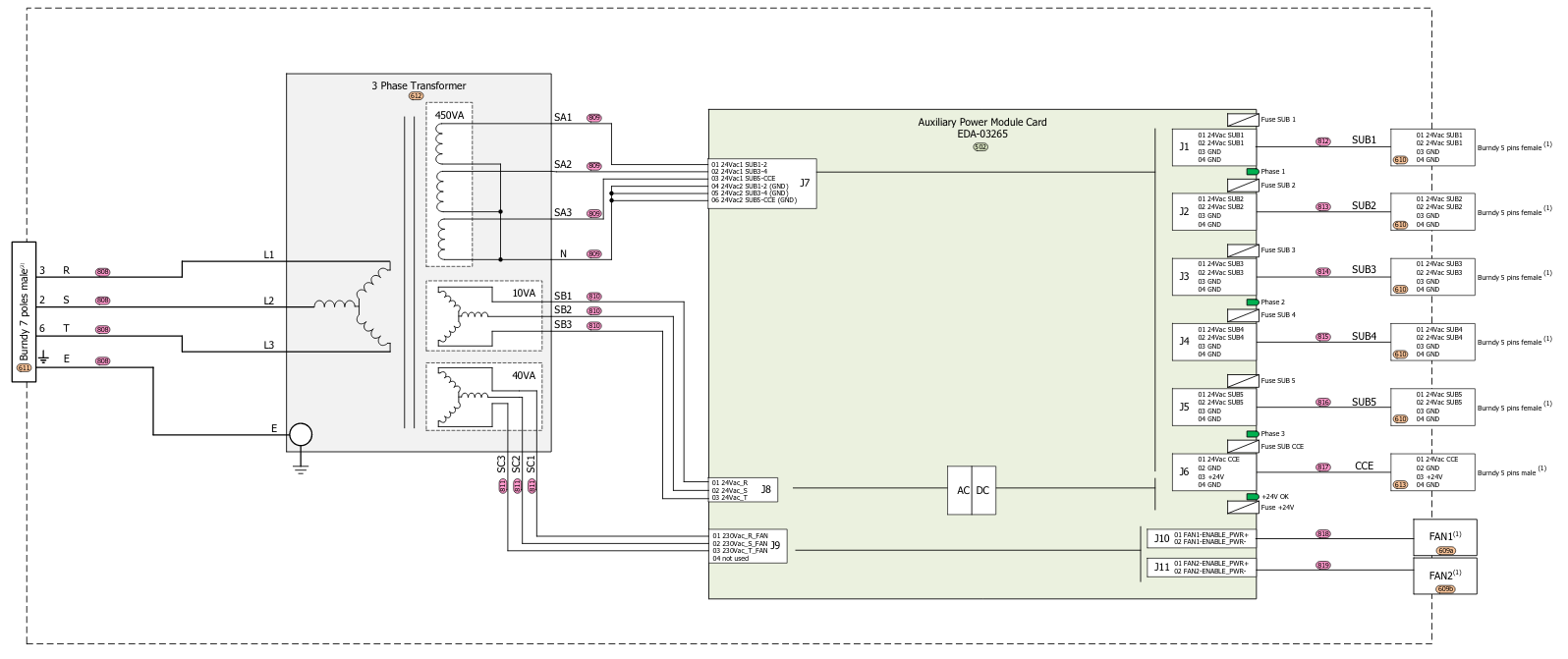

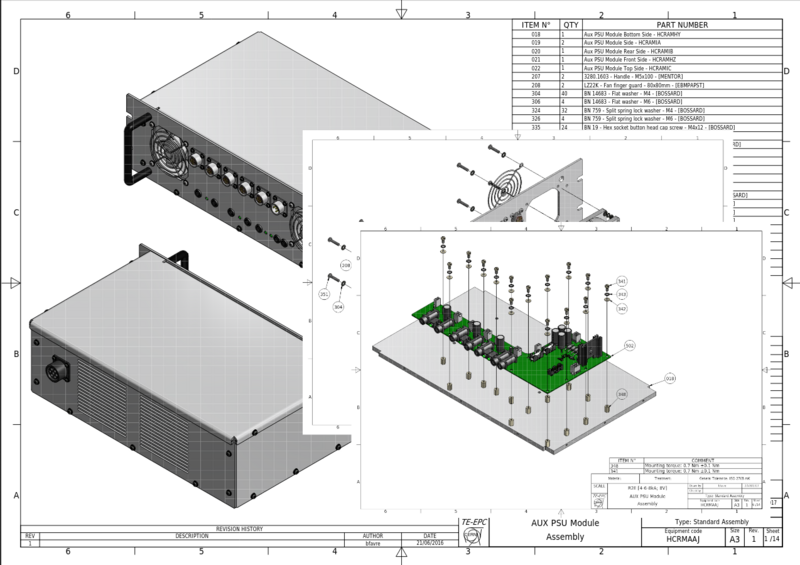

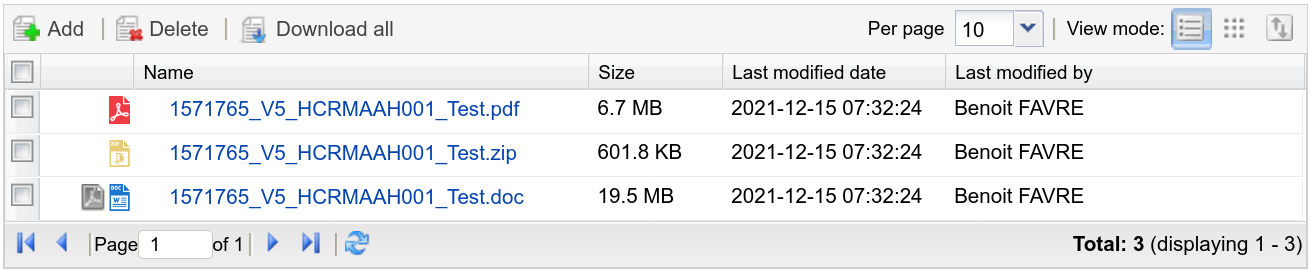

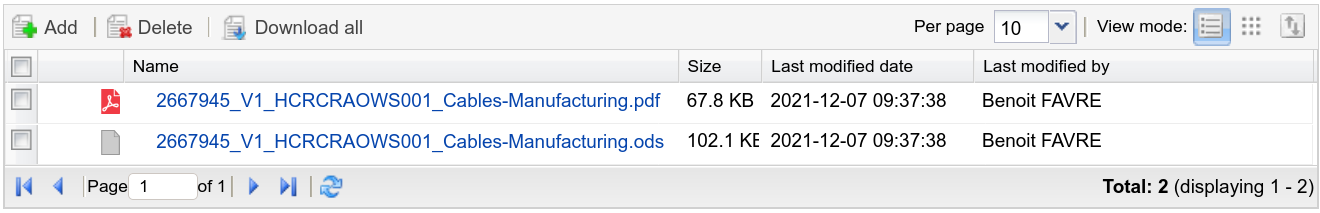

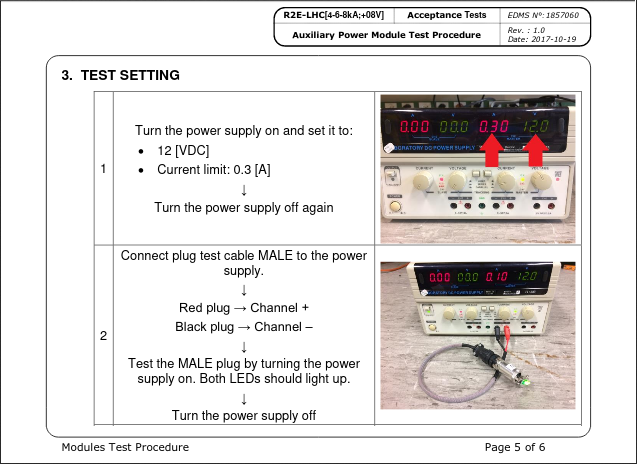

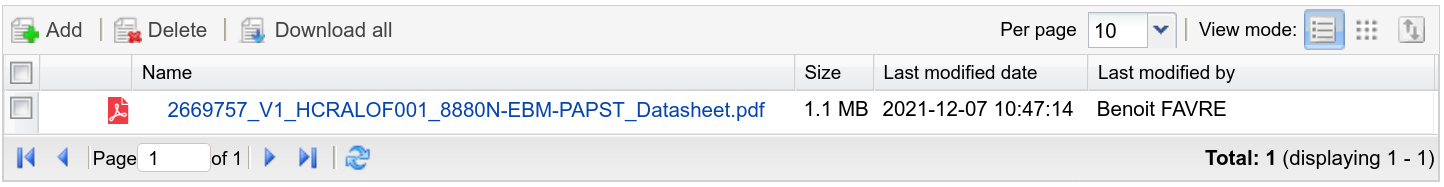

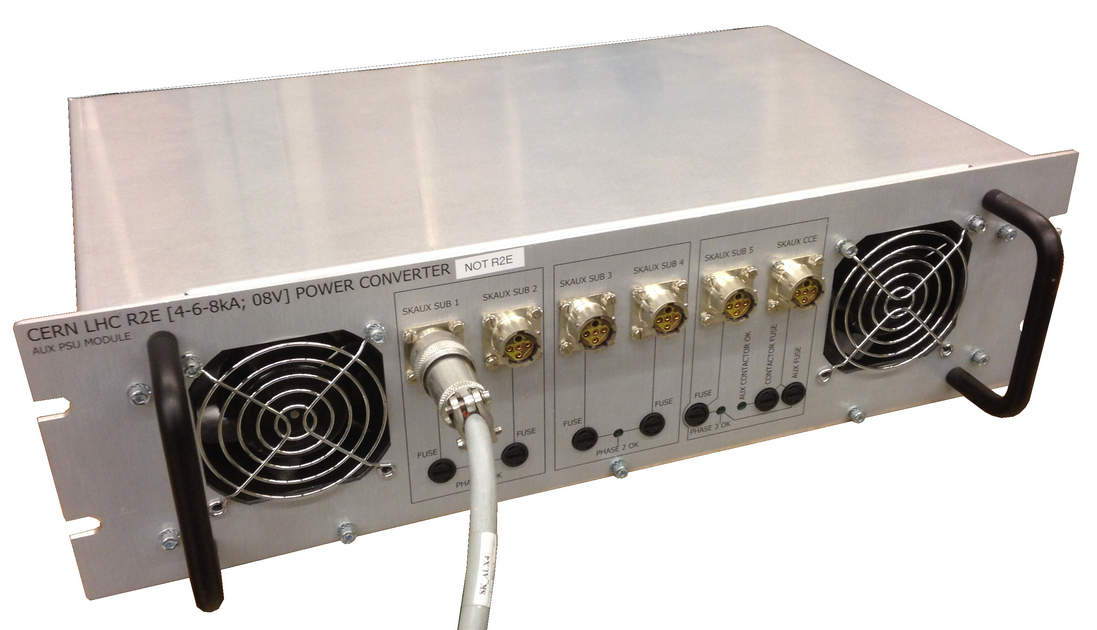

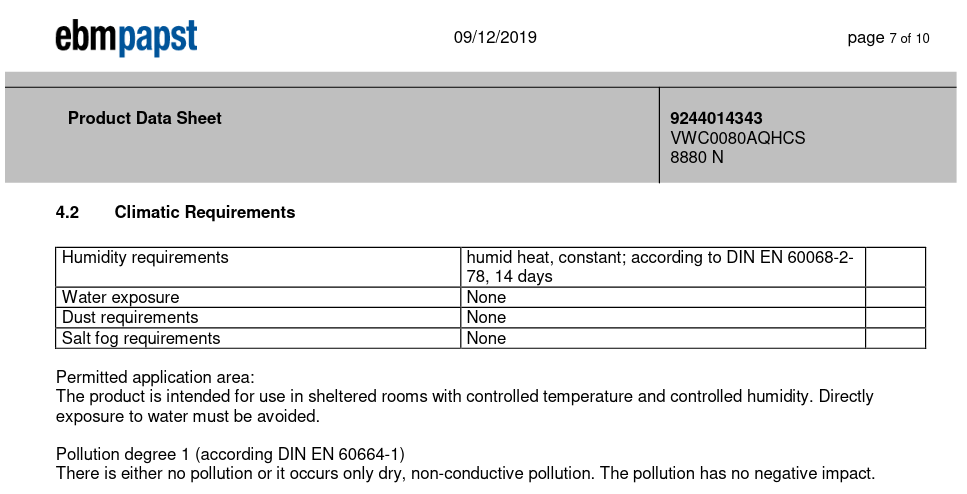

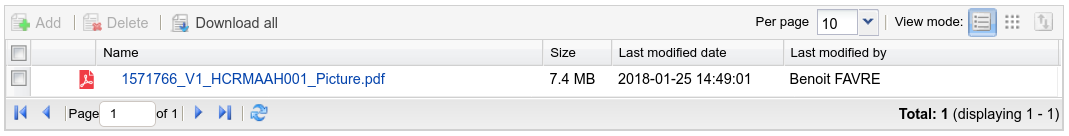

• Each Item is described through documents like: BOM, Schematics, Pictures, Assembly, test procedures depending on item's nature.
• Respect EDMS Doc naming conventions:

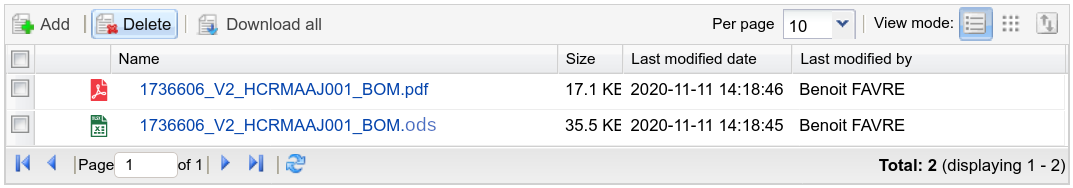

  • EDMS Doc: Input Module:[4-6-8kA 8V]: R2E - BOM
• Respect for file naming conventions:

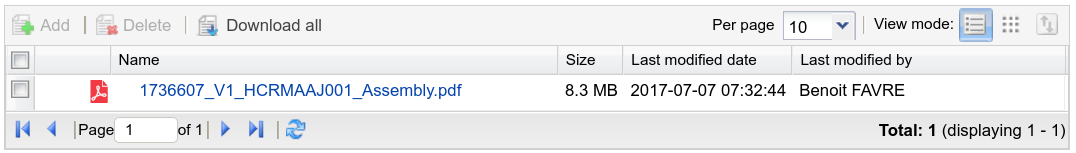

  • File ex.1:   1571762_V6_HCRMAAH001_Assembly.pdf

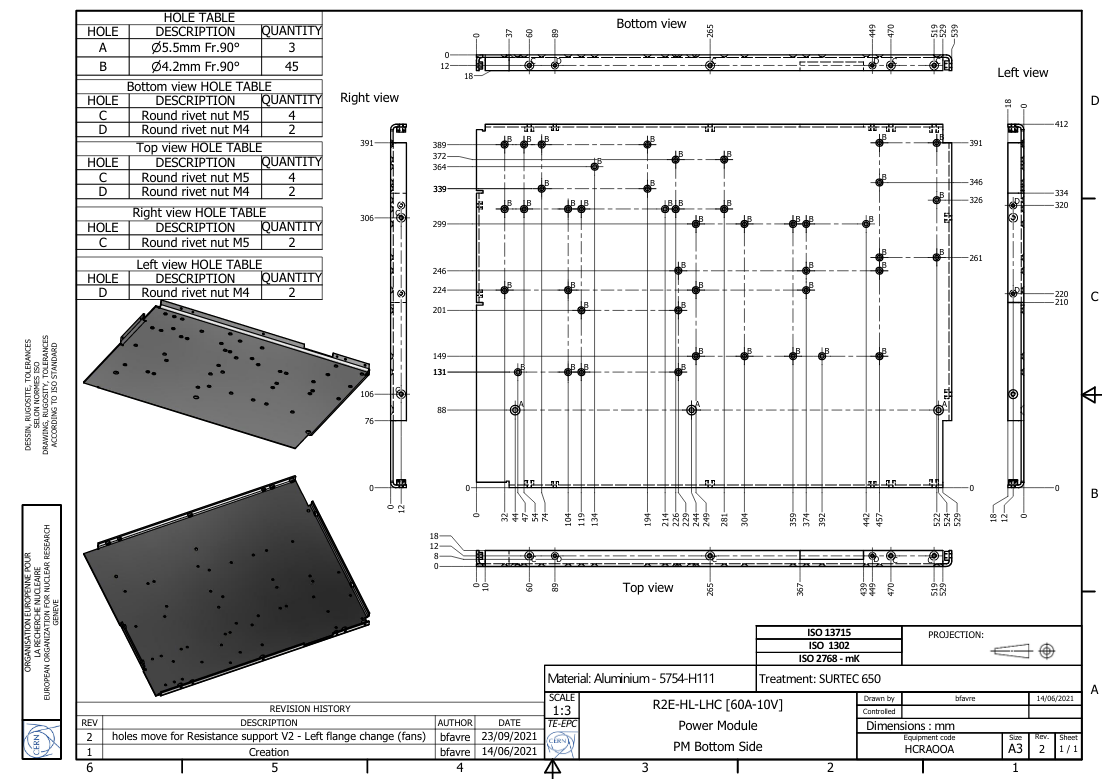

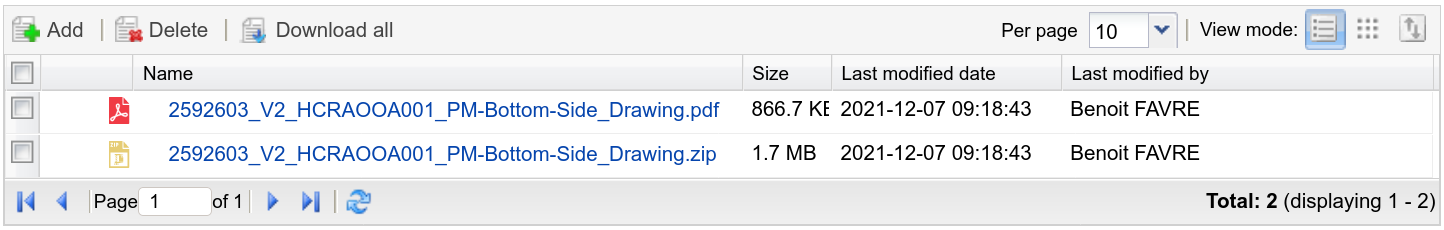

  • File ex.2:   2592603_V2_HCRMAAH001_PM-Bottom-Side_Drawing.pdf

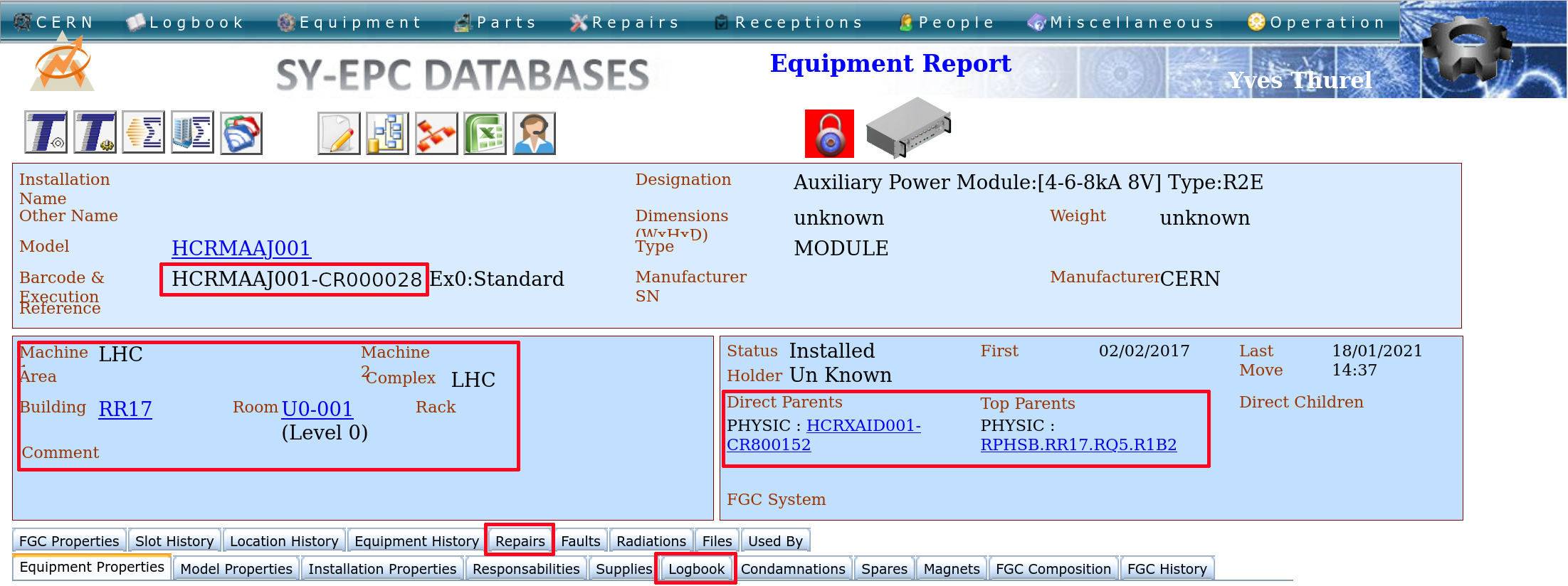

The EPC database traces the HCR equipement unit, associated to a S/N number, and then pointing to a physical individual. It can indicates where it is located at CERN, its history: repair and the logbook it would be associated.

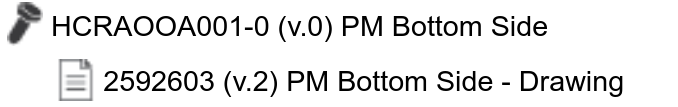

The physical individual item is linked to the model item documentation, stored in EDMS (see above).

The EPC database traces where the HCR equipement unit, associated to a S/N number, is installed in (parent) system.

A normalized request template exists, in order to request a valid Item structure to EPC/OMS.
