SY-EPC-LPC HL-LHC35A-10V Design

Converter Modelisation

PCB Cards PCB Cards - Thematic Studies Thematic Studies - Specific Studies Specific Studies - Label / Naming Conventions Naming Conventions

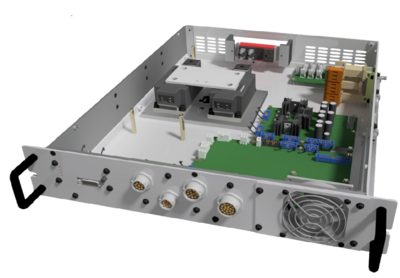

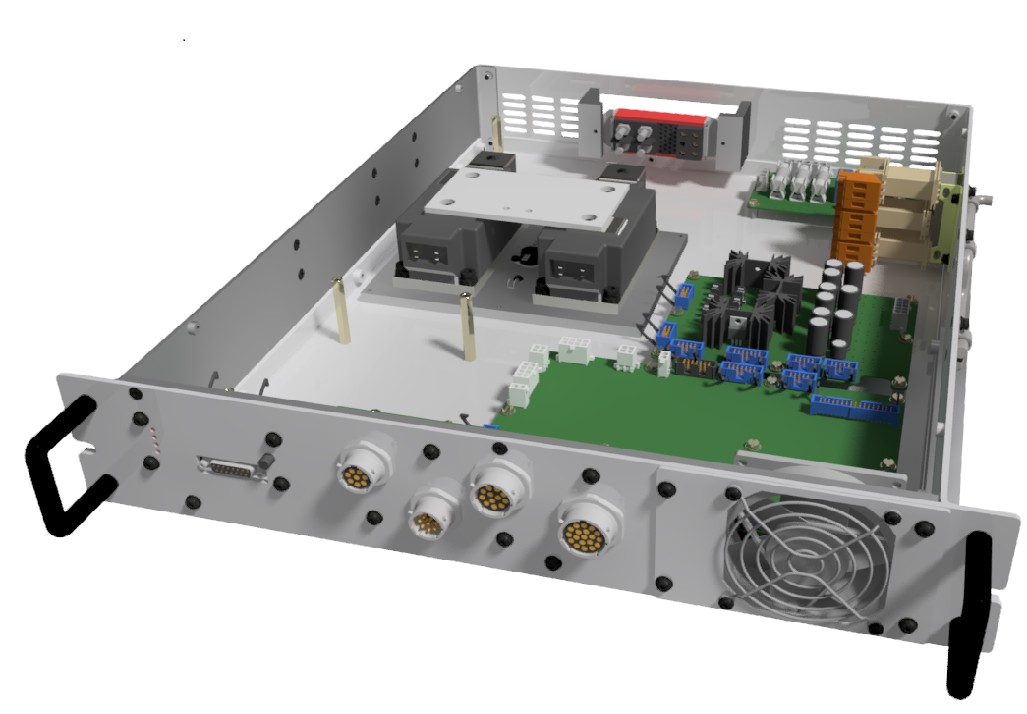

Power Module Converter PCB / Cards

List of Power Module electronic cards.

List of 120A Control & Protection Module electronic cards.

List of Inner Triple Discharge Module electronic cards.

List of 120A Converter specific electronic cards.

Model/Unit description	Schema overview	EDMS	Design Guide	LTSp. Model
Converter Cycles on Magnets (4Q, Ej)

EMC

High Frequency DC-DC.
↪ IGBT/MOS Ph.Sh. Driver.
↪ Inverter High-Freq I Meas.

Input Power Filter

Output Power Filter

Aux Pwr Supplies

Shared Sources Control
↪ Shared Srces Cpt-lvl Ctrl (saving.mode)
↪ Multiple Shared Sources Control
↪ Shared Srces Cpt-lvl Ctrl
↪ Shared Sources Corrector Design
↪ Pwr Mosfet Lin. Driver
↪ Current Srce (Mos-based)
↪ Power Mosfet Model

Crowbar
↪ Crowbar Discharges (Ej)
↪ Earth Leak. Detection
↪ Current Leads Monitoring

Fast Abort Interface

Temperature Meas & Flt Mgt

OP-Amp Schema & Studies
Electronic Std Schema & Interfaces

Simulation General Schematics
LTSpice Elements Repository
Simulation tools (G. Giuli)

reliability Studies

List of electrical sub-systems being studied and documented.

List of mechanical & electrical schematics.

PCB Name / Identifier	Ver.	Image	Card sources				Design files
PCB Name / Identifier	Ver.	Image	EDMS Item	SCH	PCB	TRK	EDMS	Add.	LTSp. Model
Current Source (Mosfet Based) [For qualification under radiations]	3.0							(B.O.M)
Rad DIM Icc(5V) Limiter [For Safer PM & CPM R2E qualif.]	1.0							(B.O.M)
Op-Amp Qualification [For fine qualification ]	1.0							(B.O.M)
PWM Qualification [For qualification under radiations]	1.0							(Design)
Thyristor & Its Trigger Qualification [For qualification under radiations]	1.0							(Cpt)
IGBT Vge Th. Radiation Qualif. [For qualification under radiations]	1.0							(Cpt)

List of PCB / Cards for specific studies.

PCB Name / Identifier	Ver.	Image	Card sources				Design files
PCB Name / Identifier	Ver.	Image	EDMS Item	SCH	PCB	TRK	EDMS	Add.	LTSp. Model
Shared Sources Converter Control: Power Mosfet PCB	2.0
Shared Sources Converter Control: Current Source Control PCB	2.0
Shared Sources Converter Control: Voltage Source Control PCB	2.0
Current Source (Mosfet Based) [For characterization studies]	2.1								+ Out.Filt.
4-Q. Output Circuit Daughter Board PCB	1.0

Shared Sources Converter Control: Power Mosfet PCB	1.0
Shared Sources Converter Control: Current Source Control PCB	1.0
Shared Sources Converter Control: Voltage Source Control PCB	1.0

List of PCB / Cards for specific studies.

PCB Standards & Info for Manufacture / Assembly Process

Project (60-120)A PCB Info

PCB Checkpoints List
PCB / Schematics Signal Labelling conventions

PCB design

Digital Signal			Emitter transistor is protected against shorting power supply voltage through no impedance, normally required, thanks to polyswitch. Emitter transistor is protected against shorting power supply voltage through no impedance, normally required, thanks to polyswitch.
"BST82 Driven Rad-Tol" Digital Signal			Principle is to drive the BST82 in the range [-4.5; 4.5] V, which doesn't lead to too high degradation of the gate threshold under radiations while ON (+4.5V). At 1 kGy, expected Vthreshold is around -1 V, perfectly handled by the -4.5 V gate level applied.
Analog Signal \| Single-End			Emitter AOP is protected against over voltage thanks to diodes. Resistor helps to limit stress (output current) on AOP if wrongly connected to any potential. Receiver AOP is protected against over voltage thanks to diodes & with series resistor protecting from over current condition input line (up to 24V typically).
Analog Signal \| Differential			Emitter AOP sends its output voltage through two different wire/lines. Receiver AOP collects the incoming voltage through a protected differential input stage (voltage & current protected).

Pure Volt. Ref >2.5 V		Make sure to count the output system consummed current in the available current from the power source, by a correct choice of R3 resistor. If used with comparator settings variable ref output voltage, check all possible configuration. a TL1431 is given to required a minimum cathode current (worst case) of 1 mA.
Simple Volt. Ref <2.5 V		Care: output current delivered to system will change the reference value. Only work with high impedance input systems. Datasheet indicate 2 mA in the zener (whatever type is) will give steady and precise enough voltage level.
Unused Comparator		From Texas Instruments application note (stored in EDMS: 2742282).
Unused AOP		From Texas Instruments application note (stored in EDMS: 2742282).

Project (60-120)A Design Generic Interfaces - EDMS 2737707
