tag Selected Components

topDemo Units

Unit Content Image Layout Config
.json		 CERN
Box		 EDMS Unit Check Scripts
DEMO BOX • RASPBERRY-PI-02.cern.ch
• 1x I2C display
• 1x I2C MCP3424 ADC | 4/4 in
• 1x I2C MCP4728 DAC | 1/4 out
• 1x Button | pin:17 		EDMS Link EDMS Link EDMS Link EDMS Link • SINE | SQUARE GEN
• READ_ADCS curve display
• SINGLE_COMMANDS
DEMO ENV • RASPBERRY-PI-06.cern.ch
• 1x I2C AHT10/20/30 ENV:1
• 1x I2C SHT30/40/41 ENV:2 		EDMS Link EDMS Link EDMS Link EDMS Link • READ TC+HUM. curve display

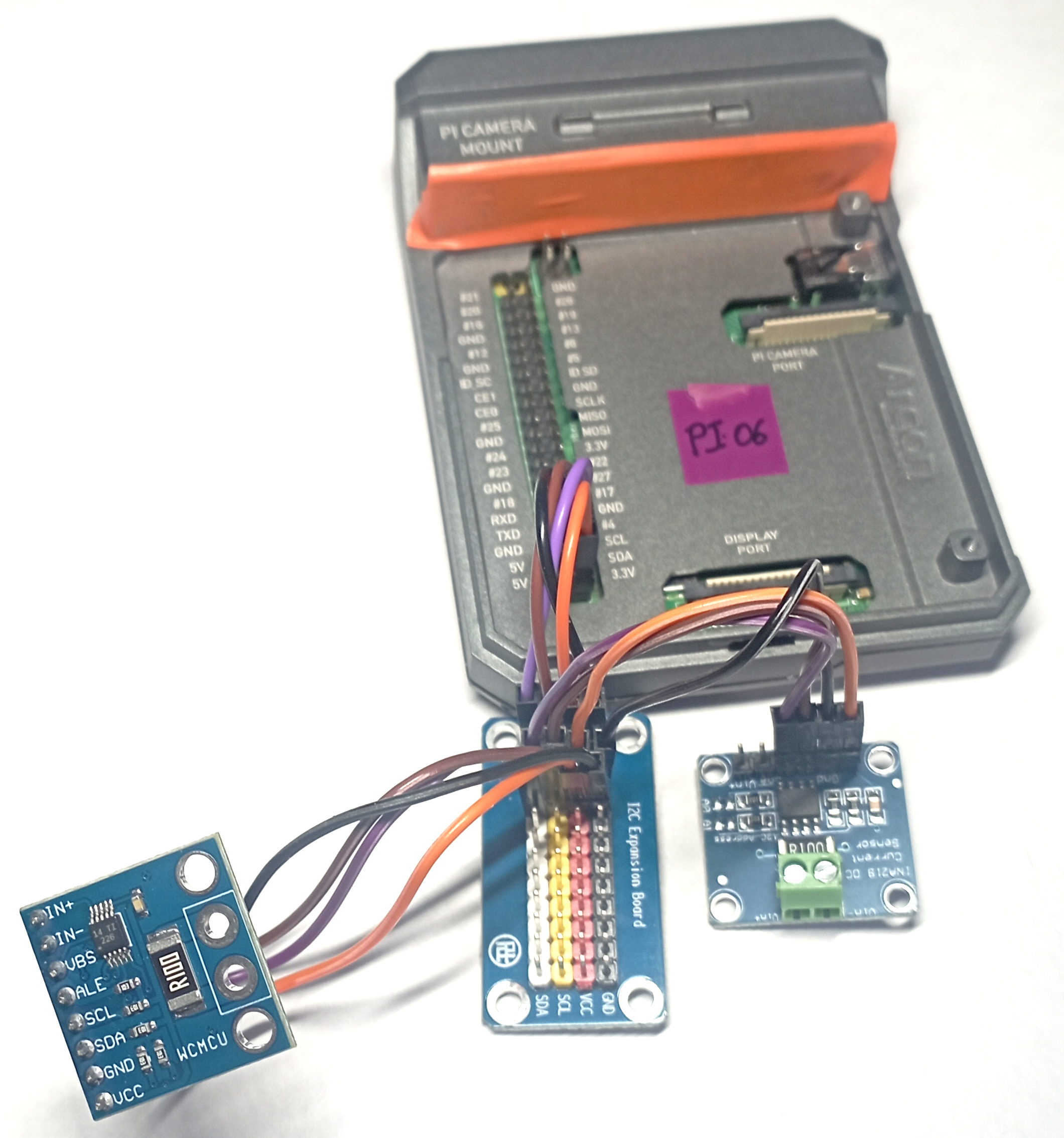

DEMO PWR • RASPBERRY-PI-06.cern.ch
• 1x I2C INA219 PWR:1
• 1x I2C INA226 PWR:2 		EDMS Link EDMS Link EDMS Link EDMS Link • READ_PWR (I,V,P) curve display
DEMO SPI • RASPBERRY-PI-06.cern.ch
• 1x SPI ADS1220 ADC
• 1x SPI MCP4921 DAC 		EDMS Link EDMS Link EDMS Link EDMS Link •
DEMO MuXGPIO • RASPBERRY-PI-06.cern.ch
• 1x I2C MCP23017 MuxGPIO:1
• 1x I2C (PCF8575) TBD 		EDMS Link EDMS Link EDMS Link EDMS Link •
DEMO CERN PCB • 1x I2C display
• 5x I2C MCP3424 ADC | 16/20 in
• 1x I2C MCP4728 DAC | 4/4 out
• 1x Button | pin: 		EDMS Link EDMS Link EDMS Link EDMS Link • A EDA-04997-V1 PCB was created as an attempt of a first demo converter tester. (I2C level shifter is required in addition).

List of demo units.

topPreferred Specific Components

Type Reference
Datasheet		 BUS Info Case / Add. Info EDMS Select
List		 Add.
default
Raspberry Pi Units Raspberry Pi 4 NA 4 Mo NA EDMS Link Calc Computation file
ADCs MCP3424 I2C 4x DIFF IN SOIC, TSSOP14 EDMS Link Calc Computation file 0x68
0x6D
ADS1115 I2C 4x IN VSSOP-10, WQFN-10 EDMS Link Calc Computation file
ADS1015 I2C 2x IN VSSOP-10, WQFN-10 EDMS Link Calc Computation file
ADS1220 SPI 4x IN TSSOP-16, VQFN-16 EDMS Link Calc Computation file NA
DACs MCP4728 I2C 4x OUT MSOP-10 EDMS Link Calc Computation file 0X60
MCP4725 I2C 1x OUT SOT23-6 EDMS Link Calc Computation file NA
MCP4921 SPI 1x OUT PDIP8, SOIC8
MSOP8, DFN-8		 EDMS Link Calc Computation file
LCD Displays DFR0063 I2C 16x2 82x35x18 mm EDMS Link Calc Computation file 0X20
DFR0154 I2C 20x4 98x60x24mm EDMS Link Calc Computation file 0X20
ENV AHT10 I2C Hum. | 2.0%
Temp | 0.3%		 Vcc: [1.8; 3.6] V EDMS Link Calc Computation file 0X38
AHT20 I2C Hum. | 2.0%
Temp | 0.3%		 Vcc: [2.2; 5.5] V EDMS Link Calc Computation file 0X38
AHT30 I2C Hum. | 3.0%
Temp | 0.5%		 Vcc: [2.2; 5.5] V EDMS Link Calc Computation file 0X38
SHT30-D I2C Hum. | 1.5%
Temp | 0.1%		 Vcc: [2.15; 5.5] V EDMS Link Calc Computation file 0X44
SHT40/41 I2C Hum. | 1.0%
Temp | 0.1%		 Vcc: [1.08; 3.6] V EDMS Link Calc Computation file 0X44
MuXGPIO MCP23017 I2C 16 I/O EDMS Link Calc Computation file
PCF8575 I2C 16 I/O EDMS Link Calc Computation file

List of specific components.

topPreferred Active Components

Type Reference
Datasheet		 Case EDMS Select
List		 LTSp.
Model
Buzzers CPI-2316-5-85T D:23.5mm, L:16mm EDMS Link Calc Computation file
Low P. N-MOSFET BST82 SOT23 EDMS Link Component Selection Matrix File LTspice direct model: parameters as a txt file vs dose (gy)
NPN Transistor FMMT491 SOT23 EDMS Link Component Selection Matrix File LTspice direct model: parameters as a txt file vs dose (gy)
PNP Transistor FMMT591 SOT23 EDMS Link Component Selection Matrix File LTspice direct model: parameters as a txt file vs dose (gy)
Op. Amplifiers OPA2192 SO8 EDMS Link Calc Computation file LTspice direct model: parameters as a txt file vs dose (gy)
Comparators LM193 SO8 EDMS Link Calc Computation file LTspice direct model: parameters as a txt file vs dose (gy)
Volt. Reference TL1431 SOT23 EDMS Link Calc Computation file LTspice direct model: parameters as a txt file vs dose (gy)
Display LED HLMP-1700
HLMP-3301
 SMD 0603 EDMS Link Component Selection Matrix File LTspice direct model: parameters as a txt file vs dose (gy)
Low-Power Diodes BAV70, BAV99, BAV199, BAW56 SOT23 EDMS Link Calc Computation file LTspice direct model: parameters as a txt file vs dose (gy)
Zener Diodes BZV55 SOD80C EDMS Link Calc Computation file LTspice direct model: parameters as a txt file vs dose (gy)
TVS & Varistors SMBJ5V0CA, SMBJ15CA NA EDMS Link Calc Computation file LTspice direct model: parameters as a txt file vs dose (gy)

List of active preferred components.

topPreferred Passive Components

Type Manuf./Ref Case EDMS Select
List		 Opt.
Info
Souriau Connectors 04F
04M
08F
08M
12F
19F
28F 		UT07 104 S21 E84T
UT07 104 P21 E8T
UT07 128 S21 E84T
UT07 128 P21 E8T
UT07 1412 S21 E84T
UT07 1619 S21 E84T
UT07 2028 S21 E86T 		EDMS Link Calc Computation file

List of passive preferred components.
