Code

Devices

Case	Command
Update code from remote.	git pull --rebase
Save changes + upload remote.	git add -A; git commit -m "details"; git push origin master;
Force local to match remote.	git fetch origin; git reset --hard origin/master;
Discard local changes + update cleanly.	git reset --hard; git pull --rebase;
Go back to old version.	git log; git reset --hard 0ad5a7a6;
Check current state.	git status;
Restore one file from remote.	git fetch origin; git restore --source=origin/master file;

Unit	Comments / Info

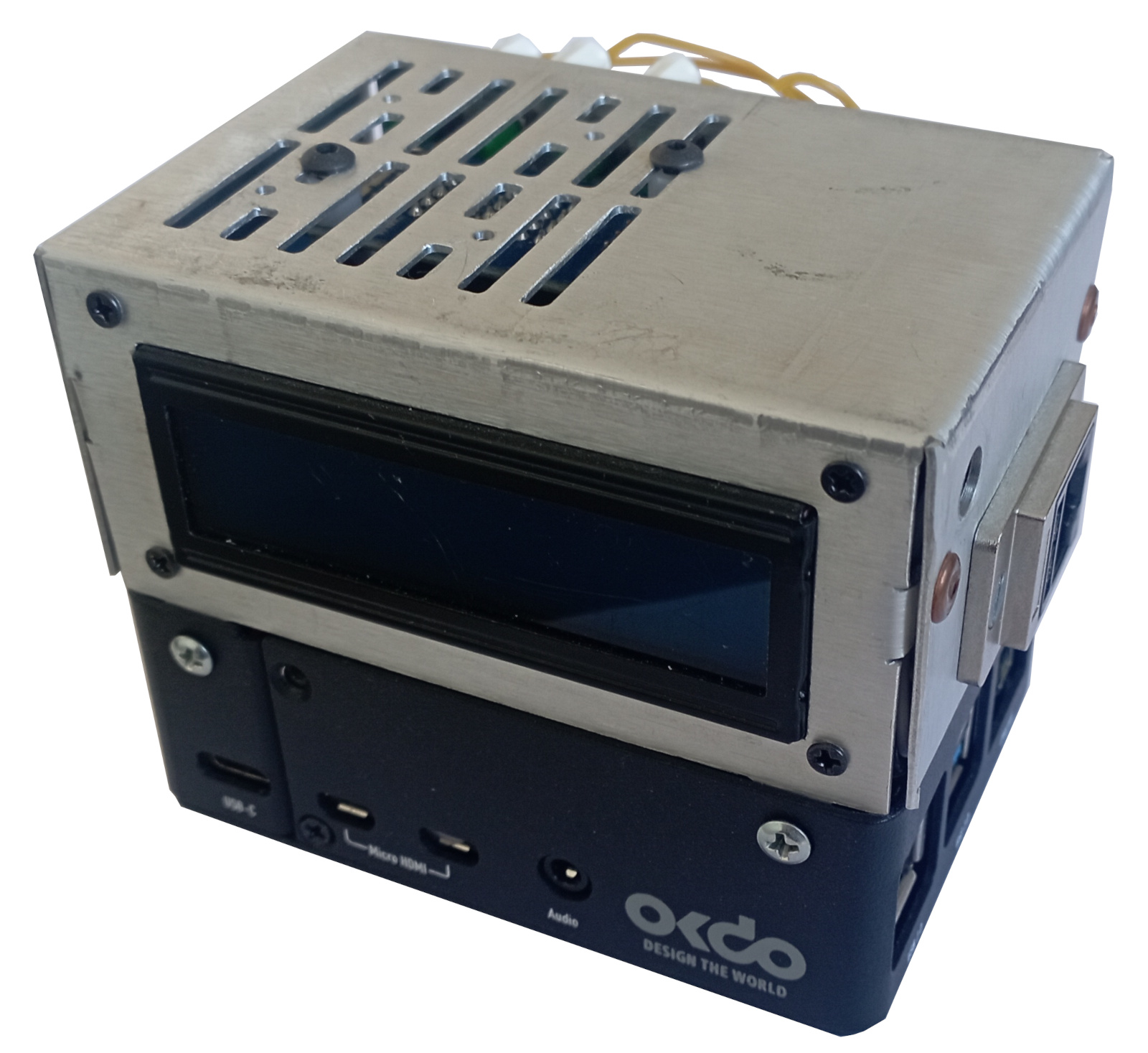

DEMOBOX	RASPBERRY-PI-02.cern.ch Layout \| config.json \| CernBox • 1x I2C display • 1x I2C MCP3424 ADC:1 \| 4/4 in • 1x I2C MCP4728 DAC:1 \| 1/4 out • 1x Button \| pin:17
DEMOBOX	SINE \| SQUARE GEN READ_ADCS curve display SINGLE_COMMANDS
ID-DALLAS PI READER	RASPBERRY-PI-0x.cern.ch Layout \| config.json \| CernBox • 1x I2C display • 1x ID Reader (internal) • 5x Button \| pin:17
ID-DALLAS PI READER

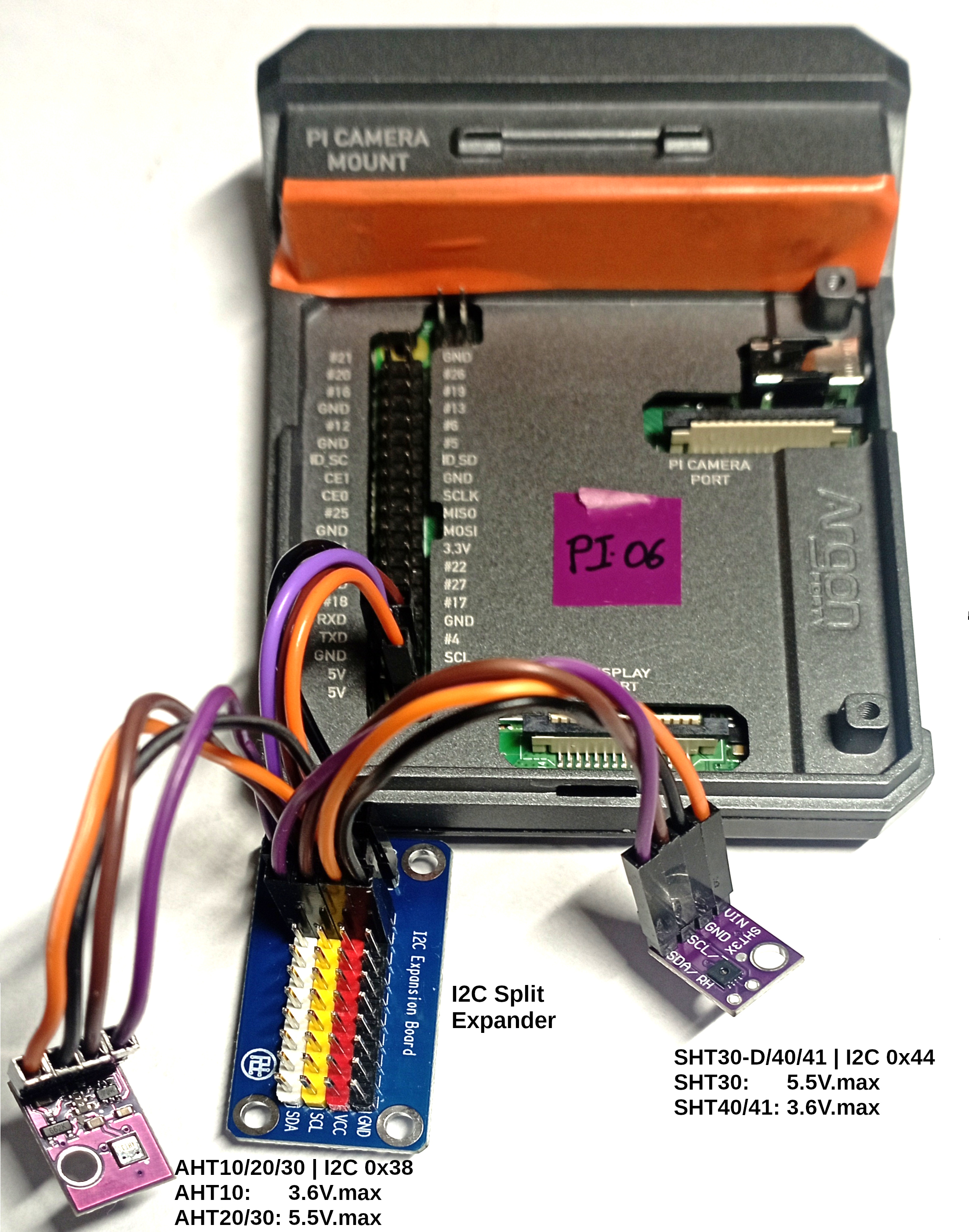

DEMO-ENV-KIT	RASPBERRY-PI-06.cern.ch Layout \| config.json \| CernBox • 1x I2C AHT10/20/30 ENV:1 • 1x I2C SHT30/40/41 ENV:2
DEMO-ENV-KIT	READ TC+HUM. curve display

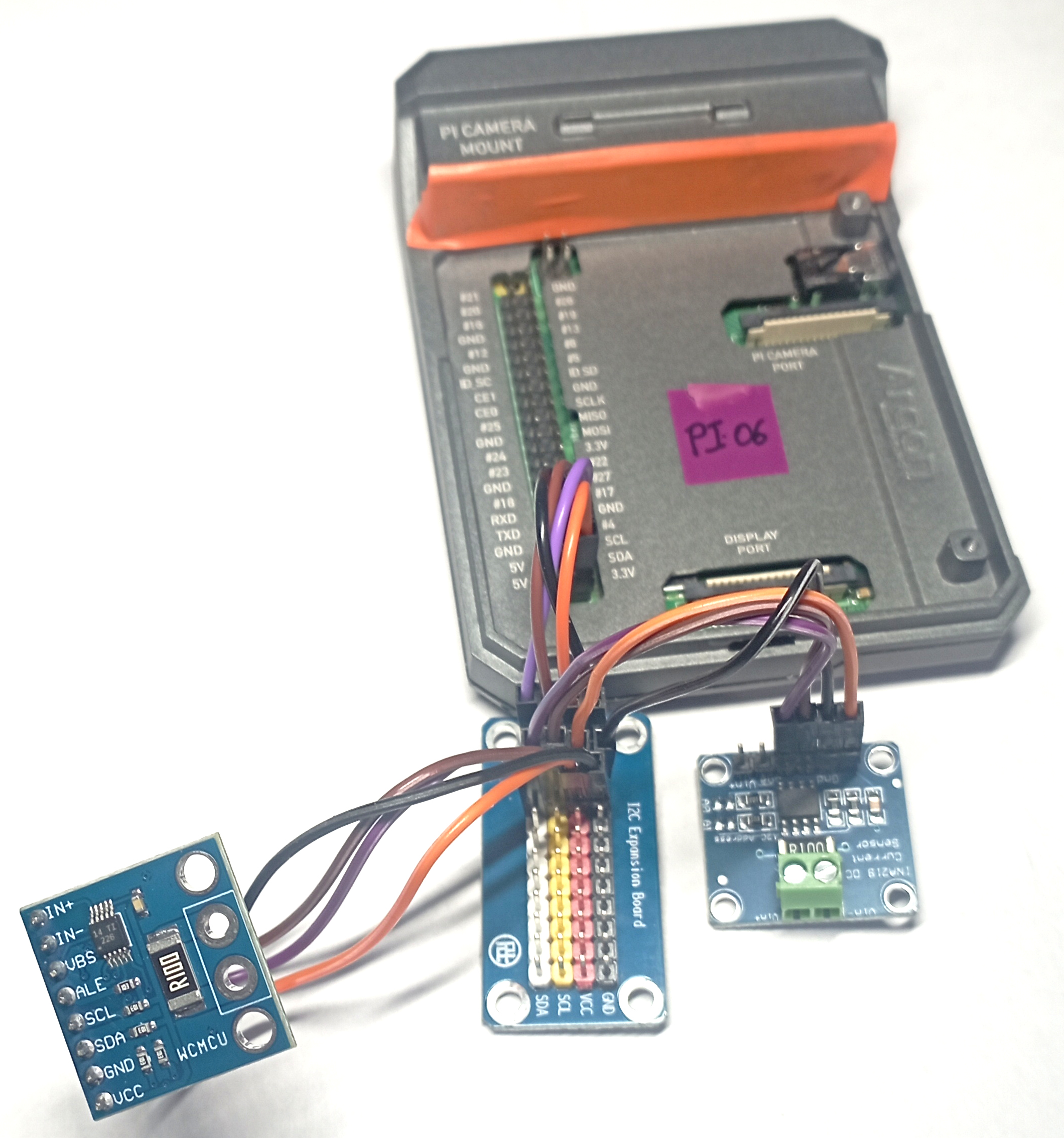

DEMO-PWR-KIT	RASPBERRY-PI-06.cern.ch Layout \| config.json \| CernBox • 1x I2C INA219 PWR:1 • 1x I2C INA226 PWR:2
DEMO-PWR-KIT	READ_PWR (I,V,P) curve display
