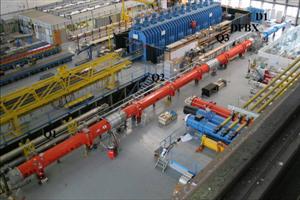

Photo of the converter

Inner Triplet: nested converters essential for HL-LHC High Performances.

	Raul HERRERO
	Rodolfo REIS
	Hugues THIESEN
Intervention	Piquet SY-EPC LHC
Developped	CERN AB-PO
	2020-2027
Manufactured	Geneva
	CERN AB-PO
Location where installed:	UR 1/5
Control type	FGC3 / FGCEther

Simplified Control Architecture

Shema of the system

Control Part simplified Architecture / Topology .vsd

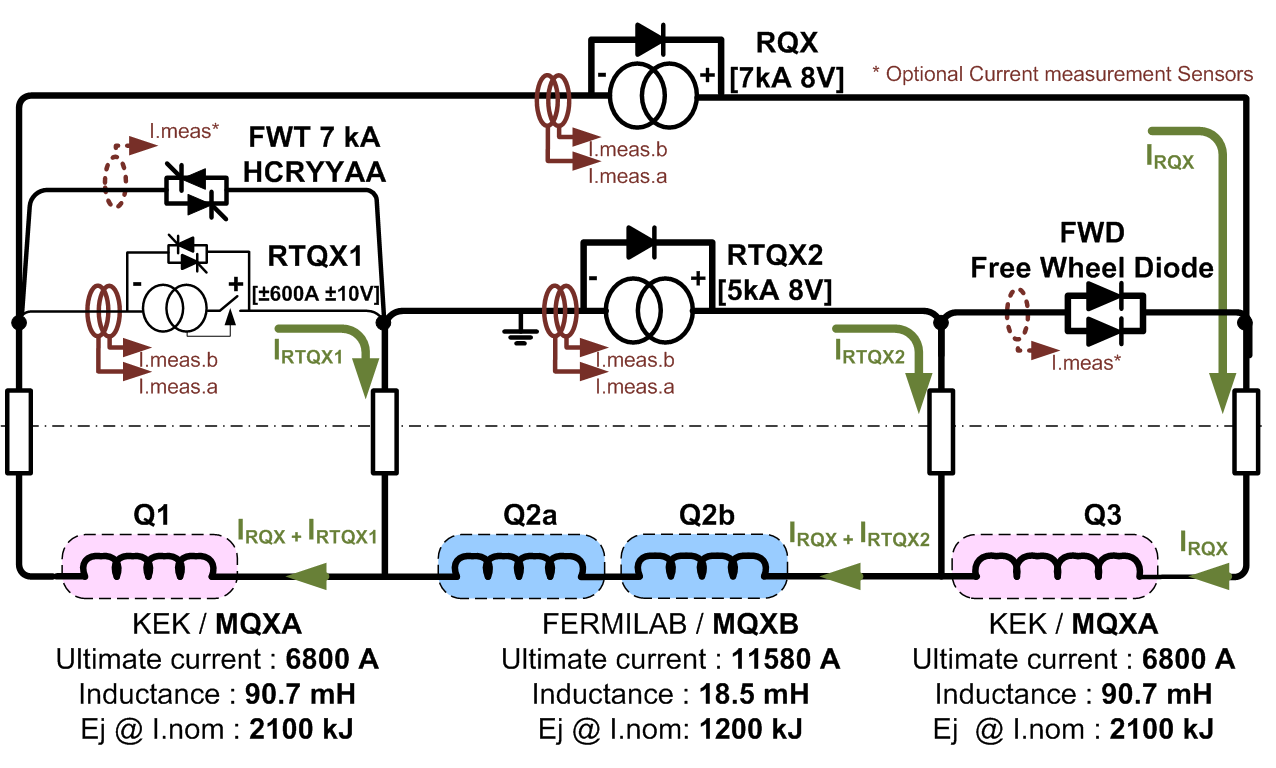

Simplified Schematic

Shema of the system

Power Part simplified Architecture / Topology .vsd
