tag Selected Components

topConverter, Rack, Modules Qty & Tracking

Converter Racks / Modules S/N Tracking File EDMS Direct Link Writer Direct Link
Converter Racks / Modules Project Quantities EDMS Direct Link Writer Direct Link

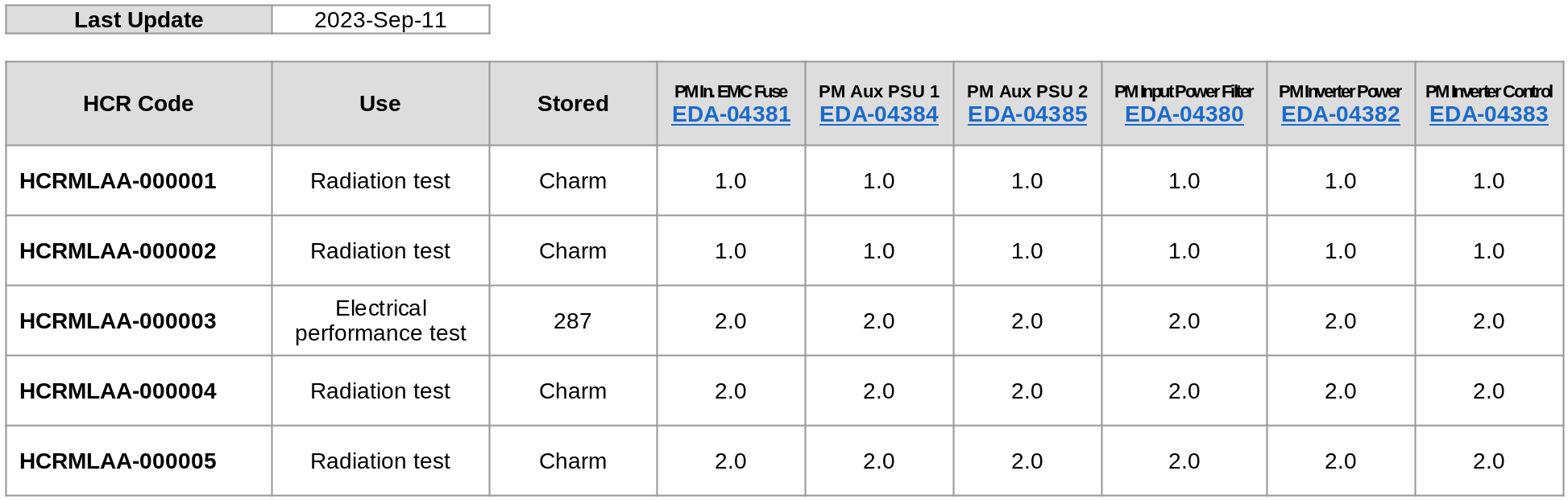

Project HL14kA Converter Items Quantities

topPreferred Active Components

Critic
Rank		 Type Reference
Datasheet		 Case EDMS Select
List		 LTSp.
Model
High Power IGBT FF150R12RT4, SKM150GB12F4, CM150DY-24T, 2MBI150XAA120-50 Module EDMS Link Component Selection Matrix File LTspice direct model: parameters as a txt file vs dose (gy)
High Power Diodes STPS200170TV1 SOT227 EDMS Link Calc Computation file LTspice direct model: parameters as a txt file vs dose (gy)
High Power Rectifier Bridge DDB6U145N16L ISOPACK EDMS Link Calc Computation file LTspice direct model: parameters as a txt file vs dose (gy)
High Phase Sh. PWM UC2875N
(UC1875J (SP)) 		DIP20 EDMS Link Calc Computation file LTspice direct model: parameters as a txt file vs dose (gy)
High Op. Amplifiers OPA2192 SO8 EDMS Link Calc Computation file LTspice direct model: parameters as a txt file vs dose (gy)
High Current Sensors HAS 300S
(BJHCS-K3-300A) 		 20mm
x40mm
x10mm 		EDMS Link Calc Computation file LTspice direct model: parameters as a txt file vs dose (gy)
High Fans INPUT: 8414NGH
OUTPUT: 3414NGH 		80x80x25
92x92x25 		EDMS Link Component Selection Matrix File LTspice direct model: parameters as a txt file vs dose (gy)
High DC-DC EDMS Link Calc Computation file

List of active preferred components.

topPreferred Passive Components

Critic
Rank		 Type Reference
Datasheet		 Case EDMS Select
List		 LTSp.
Model
High Power Capacitors Inverter-DC: C4AQ-Series
Inverter-DC: B32774-778-Series
ZVS-Snubber: R73-Series
ZVS-Snubber: B32682-686-Series
ZVS-Snubber: FKP1-Series
Output-Filter: MKS4-Series
 TBD EDMS Link Calc Computation file
High Power Electrolytic Capacitors 220uF 50V RTI-146 (MAL214651222E3) TBD EDMS Link Calc Computation file
High Ferrite Pot Cores PM8770 (Blinzinger) | BFM95
PM8770 (Ferroxcube) | 3C95
PM8770 (TDK) | N87 		PM8770 EDMS Link Calc Computation file
High Power PlugIn Connectors PP75
Phoenix F-Pin M-Pin F-Dock M-Dock
EDMS Link Calc Computation file

List of passive preferred components.
