Power Converter Characteristics

Design & Operation Responsibles

Benoit FAVRE	Electrical / Mechanical Design
Julien Chanois [2015-2021]	Main Electronic Designer & Project Leader
Maxime SARDANO	Mechanical Design(≤ 2018)

Power Converter Architecture

This Power Converter is used in LHC Machine to power superconductive magnets. It is located in the LHC underground installation, close to the loads to limit cable losses in the underground installation.

Different parts were designed and produced separately, Power Converter being finally integrated in a housing rack, with 3 main parts:

• High Precision Current sensors: DCCTs, able to measure DC current at the required precision.
• Power Part: Power Rack and its removable Power Module
• A Digital Controller (FGC) using WorldFip bus in charge of:
  • The high level control from and to the Cern Control Room
  • The high precision digital current loop
  • Collecting and reporting all status, faults, and measurements from all the different parts to the remote services, for diagnostic and operation purposes.

Power Converter simplified Architecture .ppt

Power Part

A high current switch mode power converter, designed for powering of superconducting loads requiring only positive current and positive voltage control (1 quadrant). Constructed from a modular architecture composed of 2kA power modules, the system can be easily adapted to suit specific powering requirements. Used extensively in the LHC particle accelerator. The converter is water cooled, and is thus ideally suited to situations where air losses must be carefully managed. Designed for underground operation, extensive remote diagnostics have been foreseen to allow efficient monitoring and fault diagnostics without requiring being present locally.

Additionnal free wheeling diodes located in the Power Rack always provide a current path, independent of the converter status.

Power Converter is normally assembled using a n+1 Power Bricks [+2kA +08V] to provide active redundancy in case of one subconverter is lost. For example, a [+8kA +08V] is composed of 5x [+2kA +08V] Power Brick, working as current source being controlled by a Voltage Source main control.

Global Architecture

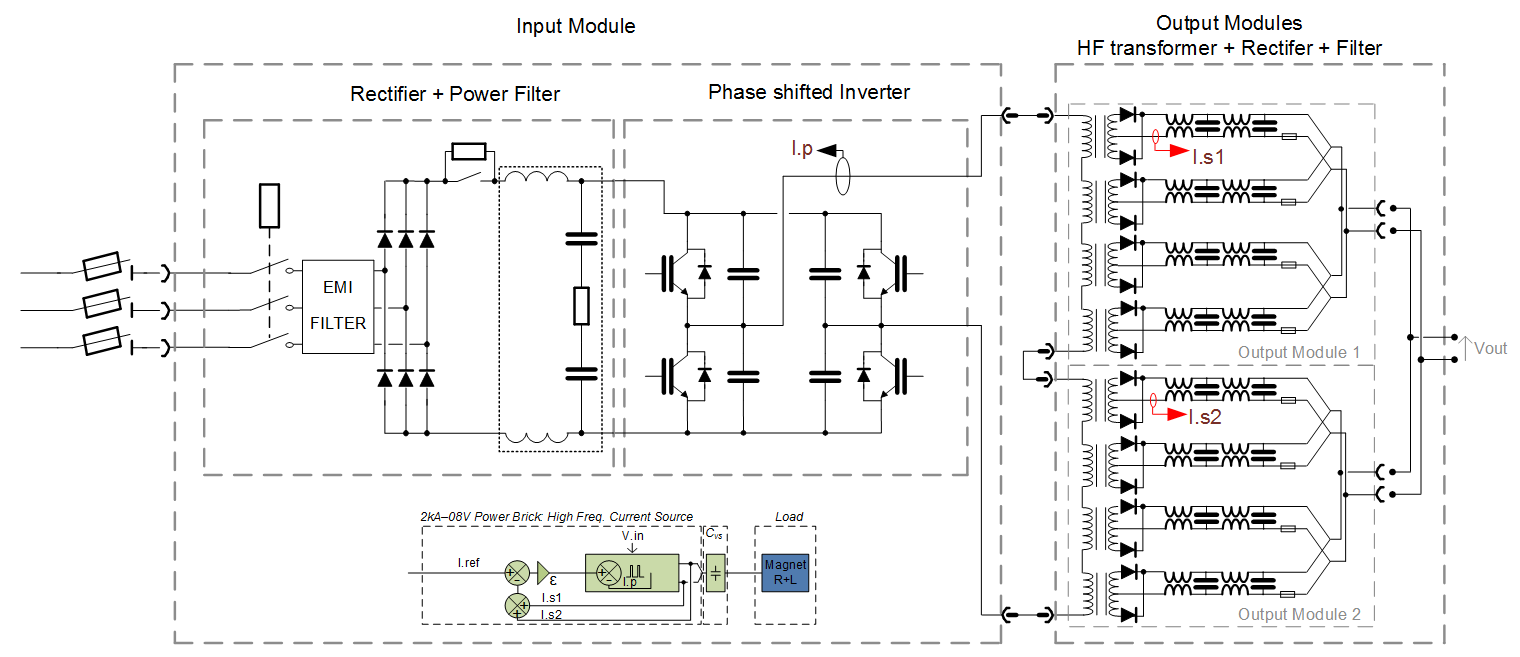

[2kA 08V] Sub-Converter simplified Architecture / Topology .vsd

Power Brick is actually a high frequency current source (7-8kHz) controlled by a 1kHz bandwidth voltage loop. One can notice that Power Brick is actually a current cource in its structure, even if voltage source capacitors are located in this block for mechanical reasons. Representation below gives a symbolic structure of the power converter, clarifying the cascade loops. ( Is1 & Is2 are actually assumed to be representative and equal to the current of each power transformer secondaries). The multiplication of rectifier stages in each output module gives the following advantages: easier design of magnetic parts, lower rating fuse (lower losses) to protect whole Power Converter being short-circuited by a faulty secondary (fuse would immediately blow in case one of the schottky dies, giving the possibility to the whole power converter to reconfigure the current level in other current sources to maintain required voltage level).

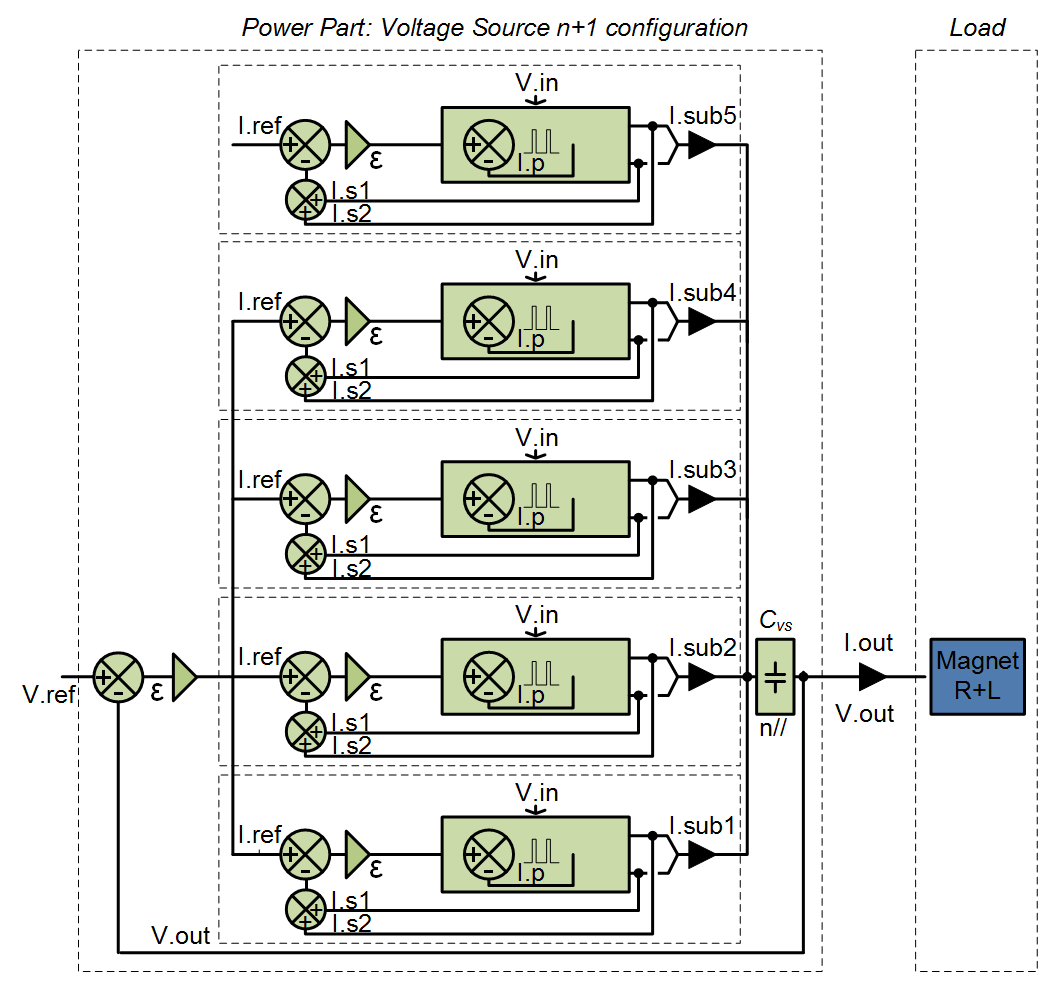

[4-6-8kA 08V] Voltage Source simplified Architecture / Topology .vsd

Typical Curves

• Converter Under Design Phase / More info to come later.

Control Part

Control & regulation principles are summarized in a detailled schematics representating only the part involved in the output current regulation scheme.

Regulation Control simplified schematic .vsd

High precision current control loop is managed by the digital controller called FGC (Function Generator Controller). This unit includes a high precision Sigma Delta Analog to Digital Converter which digitalize the analog current measurement coming from 2 DCCTs (DC current Transducer). Precision is then directly relying on sensor precision: DCCT, the ADCs, and the algorithm being used for the regulation loop. Voltage source is then used as a power amplifier, powering the load through a high bandwidth voltage loop (>500Hz).

Magnet Protection

Power Converter is part of magnet protection scheme, even if not directly fully responsible of the monitoring and diagnostic of the superconductive magnet status. Dedicated systems QPS (Quench Protection System) + PIC (Power Interlock Controller) can interlock Power Converter if magnet safety requires it.

Power Converter is then expected to:

• Always ensure that external protection system can stop the Power Converter through a safe signal called Fast Abort. This redundant signal uses 2 paths to interlock and stop the converter and its redundancy is checked each time it acts. It directly acts on DC Contactor bobbin, ensuring its opening as required.
• Stop powering the load in safe way (handling the magnet energy even when stopping, through dedicated system called free-wheeling diode). This passive system based on different paths using several free-wheeling diodes in the rack provide a safe discharge path for magnet current (energy).
• Monitor Earth current of the total circuit: converter + load (magnet and its DC cables), and take the right action if threshold reached.

• Fast Abort Interface

  Machine Interlock system can request a Fast Abort to the converter, in case a quench is detected. Converter is then assumed to react as soon and as quick as possible, stopping providing energy to the load. This signal being part of the magnet safety scheme, it is acting redundantely at the level of Converter DC Mains Contactor. 2 paths are used and monitored to stop the contactor. The schematic is described below:

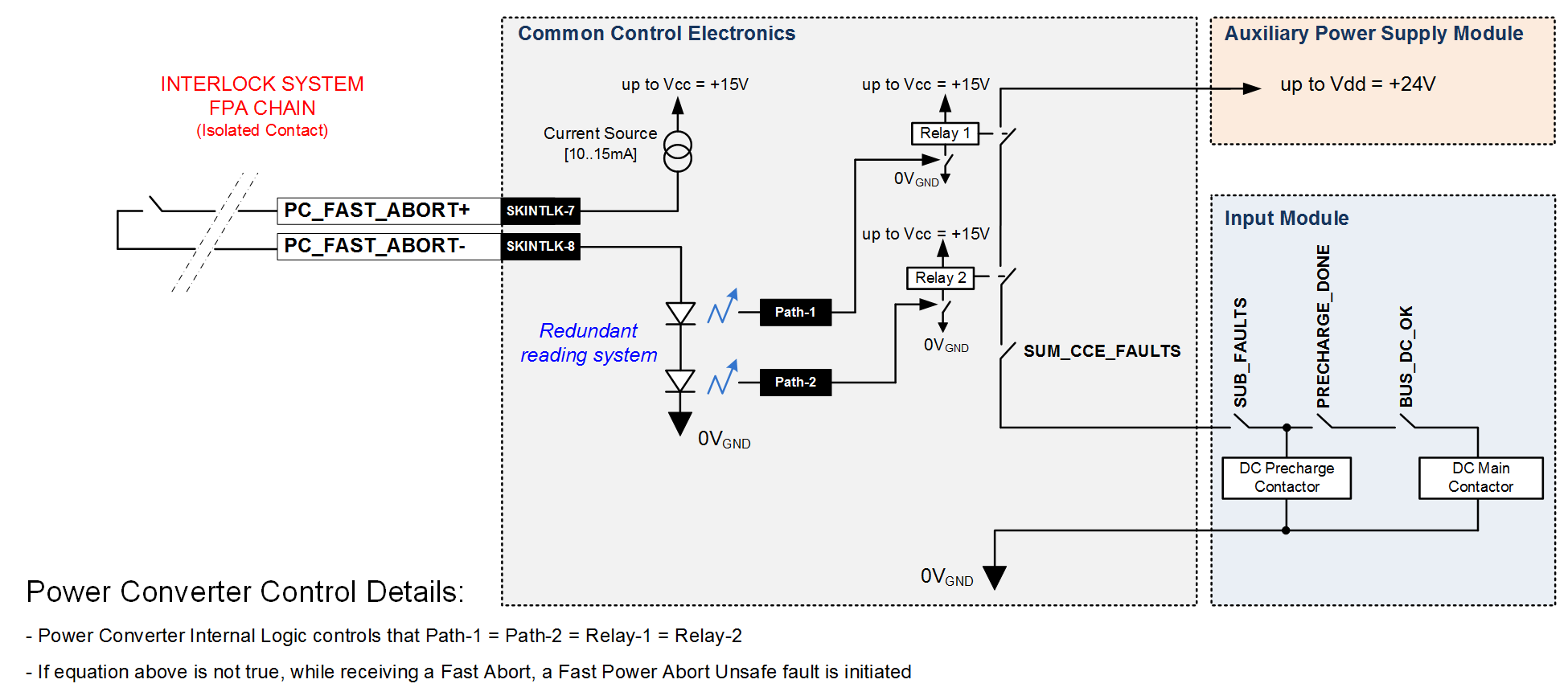

  Fast Abort Interface .vsd

• Free-wheeling diode

  The system is based on 3 different paths provided by Free-Wheeling Diodes providing a safe path for magnet current.

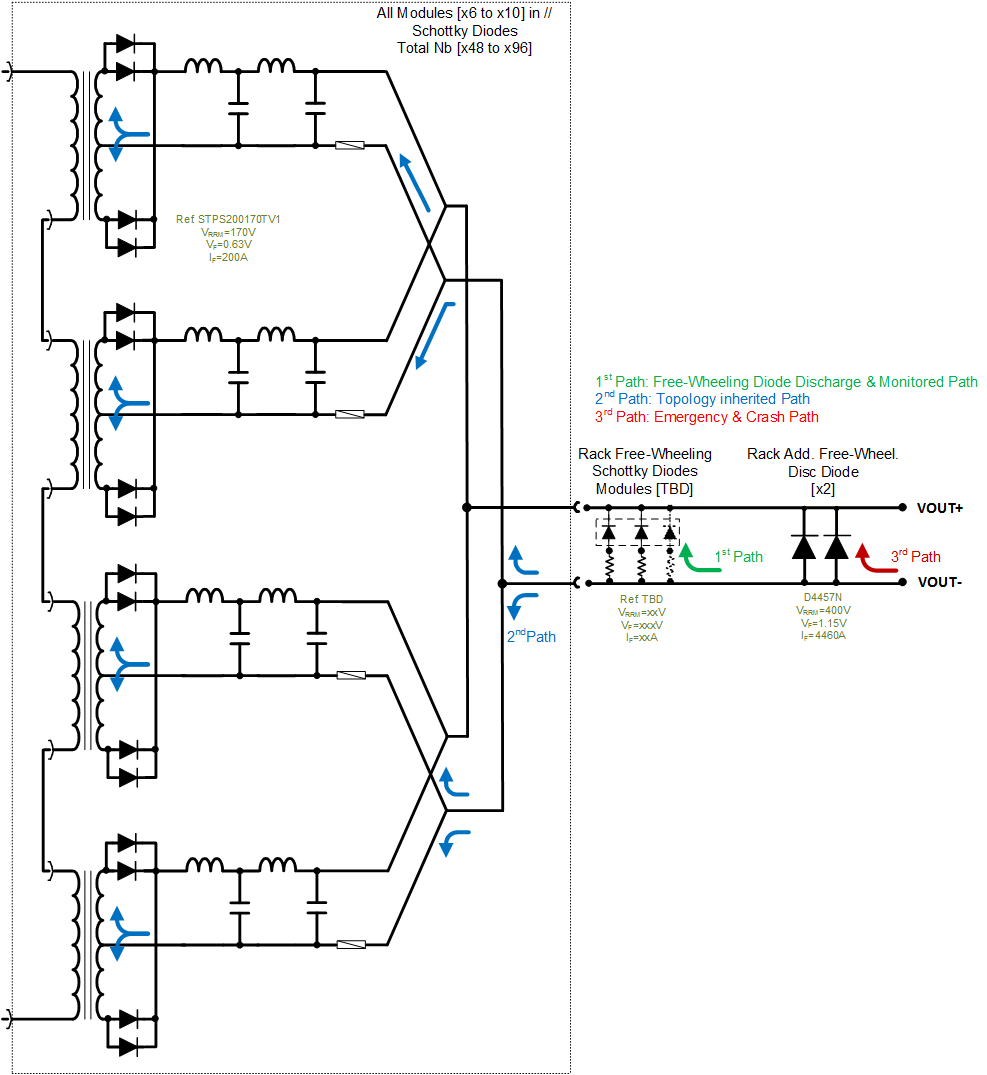

  free-wheeling Diode System simplified schematic .vsd

• Earth System

  Detection system is an active system, since relying on a 100mA current source powering a 100Ohms resistor connected between earth and negative polarity of the Power Converter. A common mode voltage is then created, (100mA x 100Ohms) making possible to detect an earth fault even with converter being OFF. (OFF, not condamned).

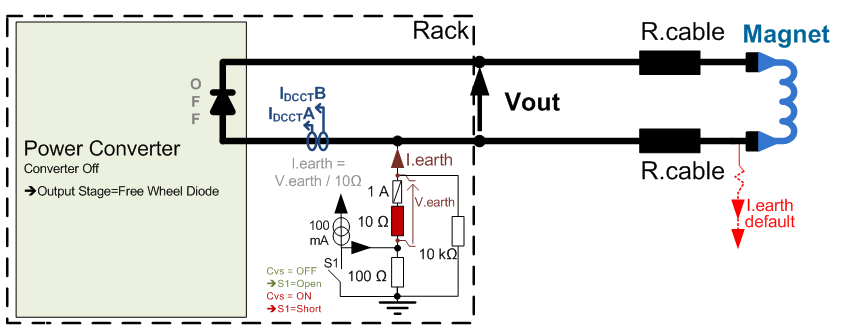

  Earthing System simplified schematic .vsd

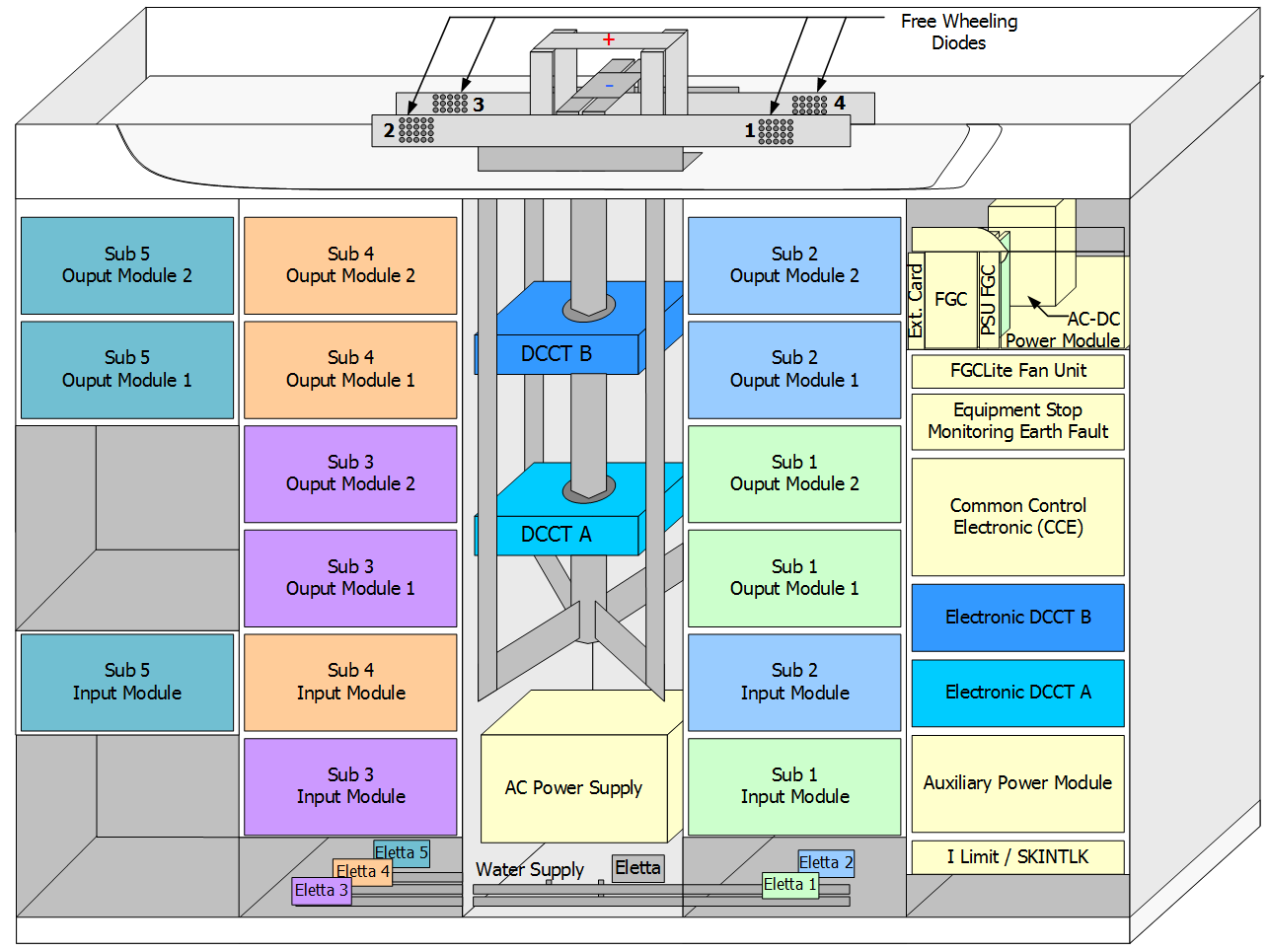

Power Converter Components .vsd

A power converter is actually a sum of different equipments under several different sections in the SY-EPC group. The modularity is a key factor for easier maintenance with regards to LHC tunnel access conditions.

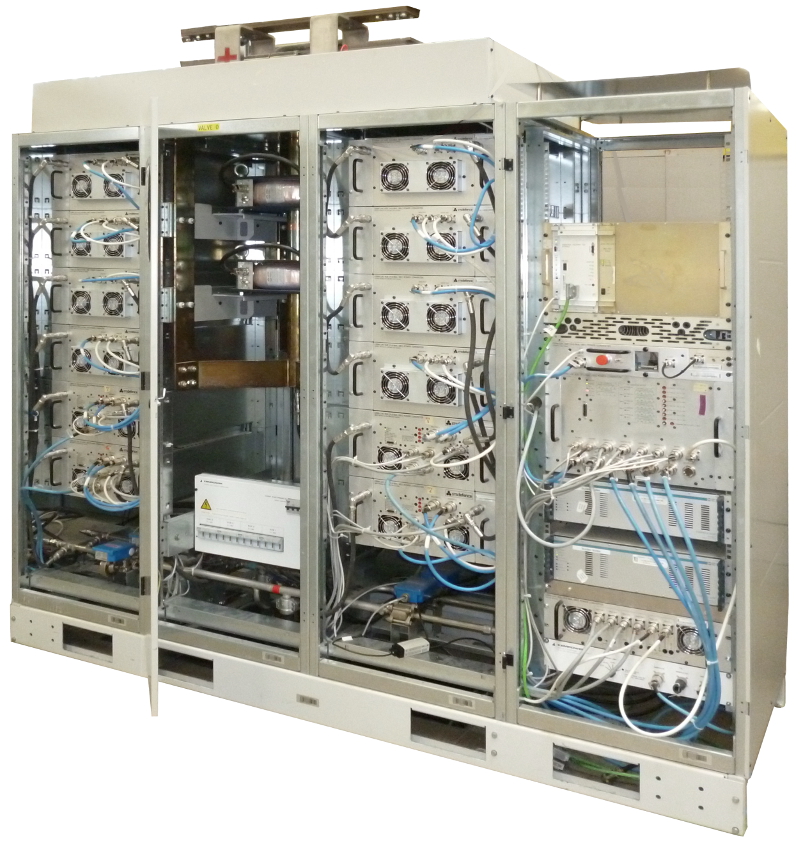

Power Converter Rack

• Power Converter Rack
  • Voltage Source Unit
    • n+1 Sub-Converters
      • 1x Input Power Module
      • 2x Output Power Modules
    • Common Control Electronics (CCE)
    • Aux Power Module
    • Free-Wheeling Diodes
    • FGC Extension Board
    • SKINTLK Module
    • I Limit Module
    • Eq. Stop & Earthing Protection Module
  • FGC2/FGClite Fan tray unit
  • 2x Current sensors: DCCTs
    • DCCT Electronic
    • DCCT Head
  • Electronic Chassis (Type x)
    • Digital Controller: FGClite
    • AC/DC Power Module
    • PSU FGC Tri-volt
    • Sigma Delta 22 bits ADC (Inner Triplet Only)

Magnet Types

Machine Installation

Production Contract & Contact History

Developped	CERN (R2E Modules)
	2012-2018
Manufactured	Input and Output Modules --> STS Defence (UK)
	CCE Module --> Rentron (Greece)
	Aux PSU and Protect Modules --> Prisma (Greece)
CERN Contact	Benoit FAVRE

Production Quantity

R2E Sub-modules definition vs use .xls

Spare Cards/Components Strategy

R2E Spare Cards/Components Strategy .xls

Converter Circuit Names
